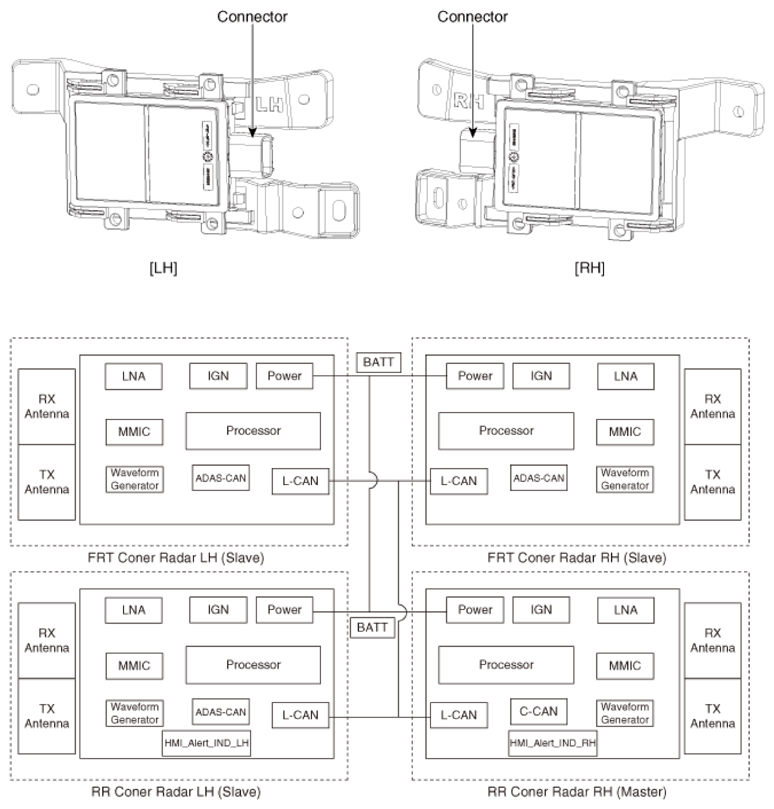

Components And Components Location

Courtesy of HYUNDAI MOTOR AMERICA

Connector	NO	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	B+
	2	ADA5 CAW (High)
	3	-
	A	L-CAN (High)
	5	-
	6	-
	7	ADAS CAN (Low)
	8	IGN1
	9	L-CAN (Low)
	10	Ground
	11	-
	12	-
