Components And Components Location: Components

Courtesy of HYUNDAI MOTOR AMERICA

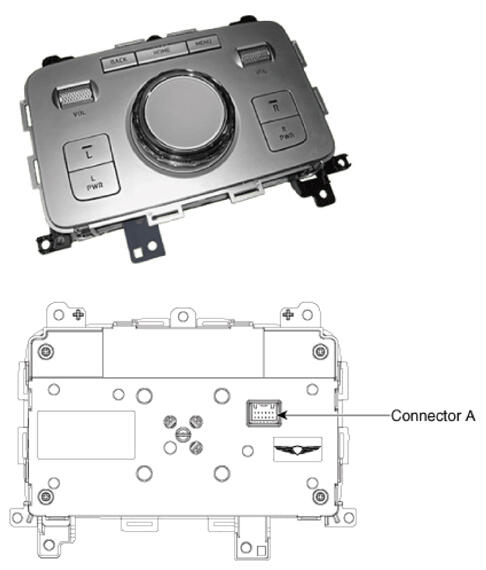

Connector A	Pin NO	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	L-HS-CAN (LOW)
	2	L-HS-CAN (HIGH)
	3	ACC
	4	RRC Battery (+)
	5	ILL (+)
	6	-
	7	ILL (-)
	a	Ground
	9	-
	10	-
	11	-
	12	-
