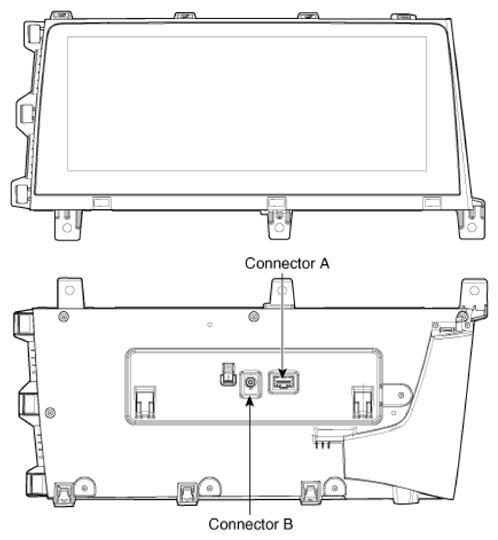

Components And Components Location: Components

Courtesy of HYUNDAI MOTOR AMERICA

Connector A	Pin	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Monitor power
	2	-
	3	-
	4	-
	5	Monitor GND_DTTECT
	6	Monitor ground

Connector B	Pin	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Video input
	2	Ground
