Components And Components Location: Components

Courtesy of HYUNDAI MOTOR AMERICA

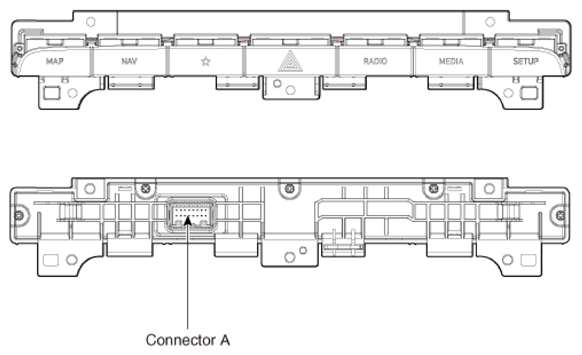

Connector A	Pin	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Local HS CAN Low
	2	Local HS CAN High
	3	Hazard switch
	4	-
	5	Hazard switch ground
	6	Hazard switch IND
	7	-
	8	Battery (+)
	9	Keyboard power ground
	10	Illumination (+)
	11	-
	12	Illumination (-)
	13	Reset
	14	-
	15	-
	16	Keyboard ground
