Parking Switch: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the rear propeller shaft.

    (Refer to Driveshaft and Axle - "REAR PROPELLER SHAFT ")

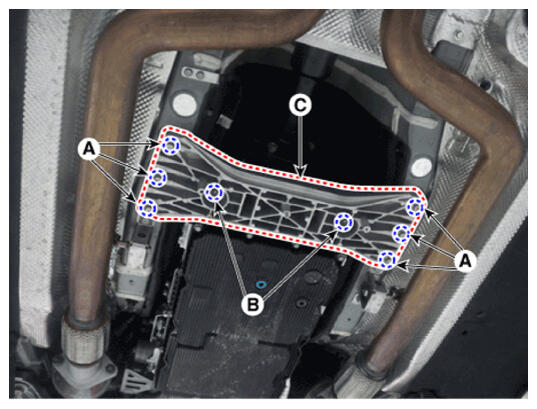

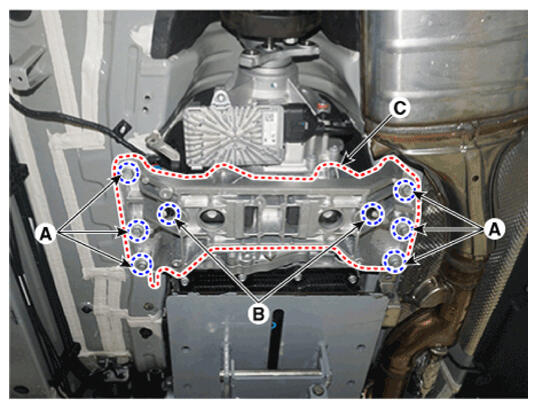

  3. Loosen the bolts (A) and nuts (B) and then removing the transmission bracket (C).
    G16848573Courtesy of HYUNDAI MOTOR AMERICA
    G16848574Courtesy of HYUNDAI MOTOR AMERICA
    NOTE: support the transmission solenoid valve body cover using a jack (A).

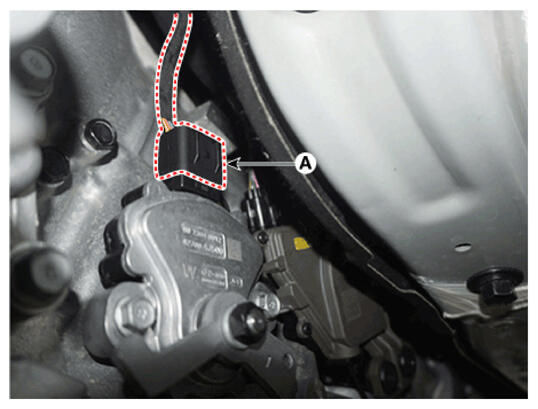

  4. Disconnect the parking switch connector (A).
    G16848575Courtesy of HYUNDAI MOTOR AMERICA

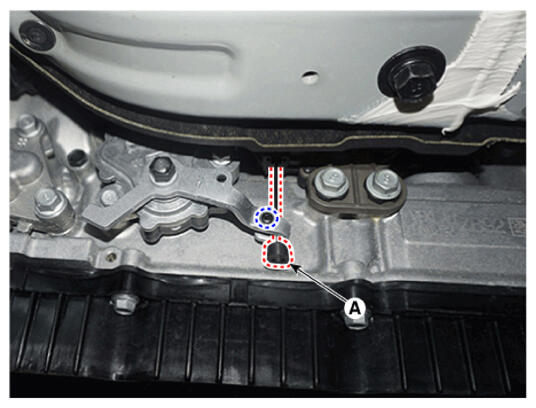

  5. Loosen the fastener and then separate the parking release cable (A).
    G16848576Courtesy of HYUNDAI MOTOR AMERICA

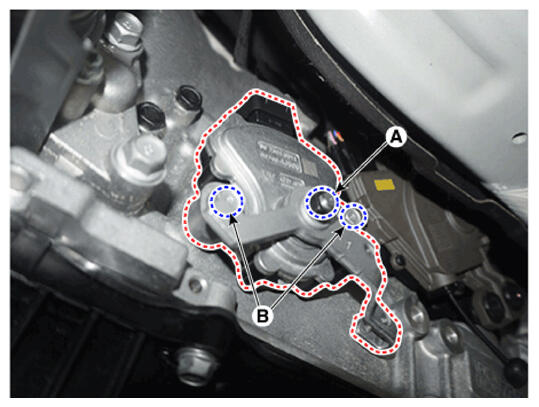

  6. Loosen the nut (A) and the bolts (B) and then removing the parking switch.
    G16848577Courtesy of HYUNDAI MOTOR AMERICA
