Removal And Installation: Removal
- Disconnect the negative (-) battery terminal.
- Remove the luggage side trim.
(Refer to Body - "LUGGAGE SIDE TRIM ")
- Remove the rear pillar trim.
(Refer to Body - "REAR PILLAR TRIM ")

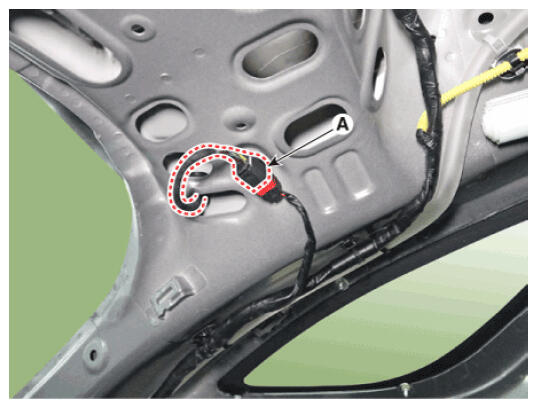

- Disconnect the PTG drive unit connector (A).

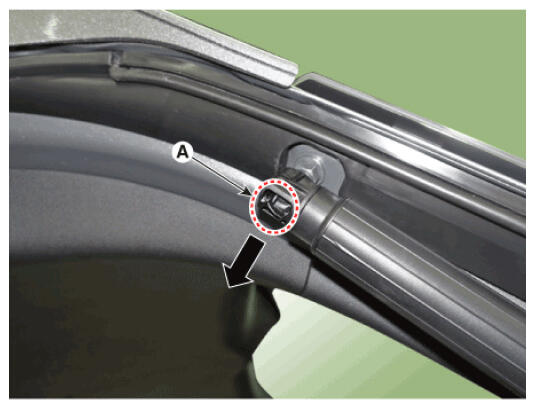

- Using a flat-tip screwdriver, lift up slightly the socket clips (A).NOTE:
- Take care not to be closed the tail gate, when removing the lift.

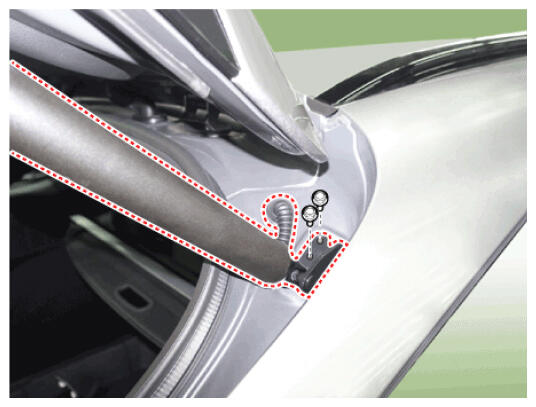

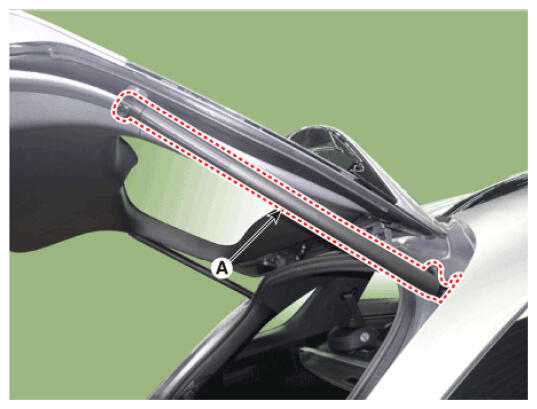

- Loosen the mounting bolts and then remove the PTG drive unit assembly.CAUTION:
- Removing or installing the hood requires an assistant.
- When removing the PTG spindle, be careful not to close the tailgate.
