Removal and Installation
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")
- Disconnect the ignition coil connectors (A) and fuel feed quick connector (B).

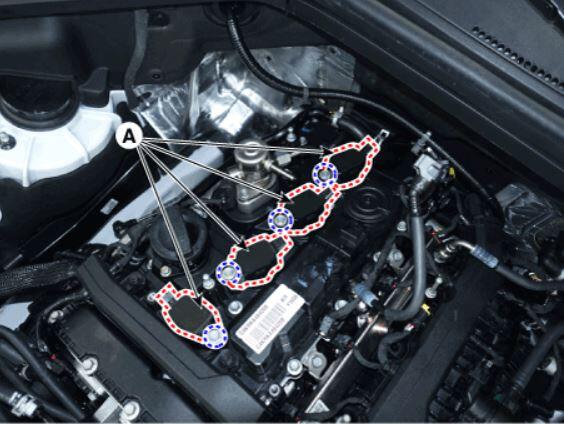

- Remove the ignition coil (A) after loosening the mounting bolt.
Ignition coil mounting bolt:
9.8-11.8 N.m (1.0-1.2 kgf.m, 7.2-8.7 lb.ft)
- Install in the reverse order of removal.
