Description and Operation: Description

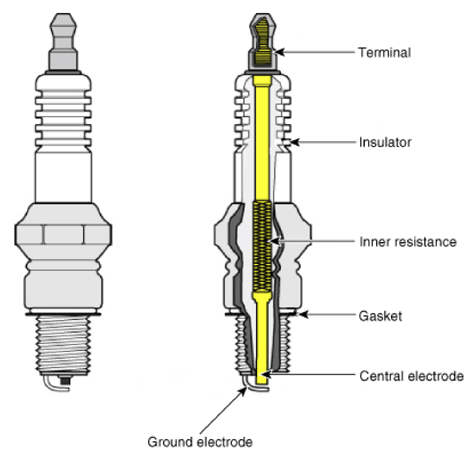

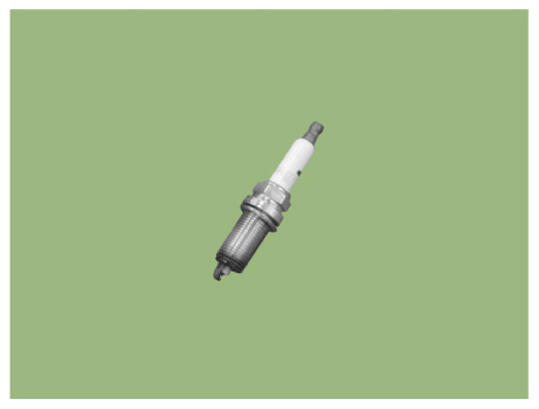

A spark plug is a device for delivering electric current from an ignition system to the combustion chamber of a spark-ignition engine to ignite the compressed fuel/air mixture therein by means of an electric spark, while containing combustion pressure within the engine. A spark plug has a metal threaded shell, electrically isolated from a central electrode by a porcelain insulator.

G16833844Courtesy of HYUNDAI MOTOR AMERICA
G16833845Courtesy of HYUNDAI MOTOR AMERICA
