Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

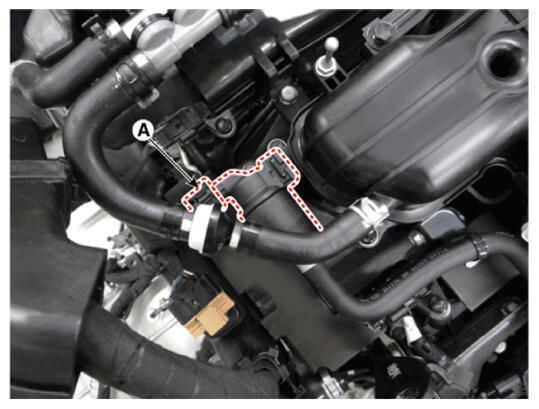

  2. Disconnect the purge control solenoid valve connector (A).
    G16834086Courtesy of HYUNDAI MOTOR AMERICA

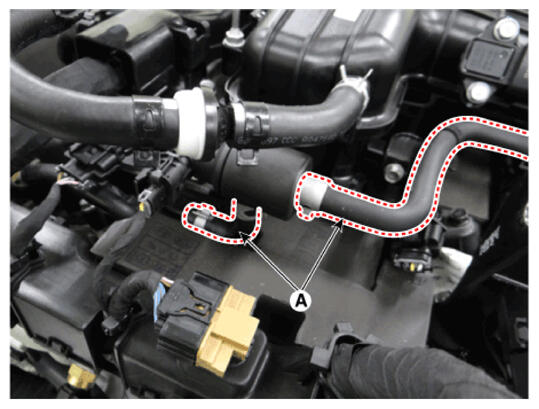

  3. Disconnect the vapor hoses (A) from the purge control solenoid valve.
  4. Remove the valve from the bracket.
G16834087Courtesy of HYUNDAI MOTOR AMERICA
