Repair Procedures: Inspection

  1. Turn ignition switch OFF.
  2. Disconnect the E-module connector (A).

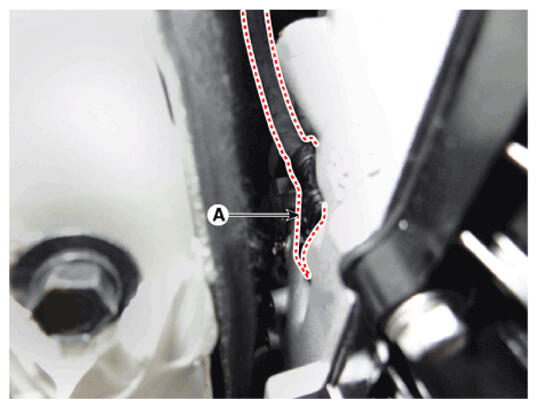

    G16830434Courtesy of HYUNDAI MOTOR AMERICA
  3. Measure the resistance between oil temperature sensor terminal (15) and terminal (16).
  4. Check that the resistance is within the specification.
    Temp [(°C)°F] Resistance (kΩ)
    (-40) -40 139.5
    (-20) -4.0 47.4
    (0) 32.0 18.6
    (20) 68.0 8.1
    (40) 104.0 3.8
    (60) 140.0 1.98
    (80) 176.0 1.08
    (100) 212.0 0.63
    (120) 248.0 0.38
    (140) 284.0 0.25
    (160) 320.0 0.16
