Repair Procedures: Installation

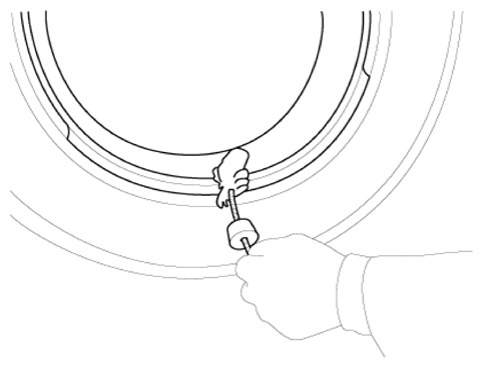

Apply tire soap or lubrication to the top and bottom tire beads.
CAUTION:
- When changing the wheel, do not reuse the snap-in type TPMS sensor.
Courtesy of HYUNDAI MOTOR AMERICA

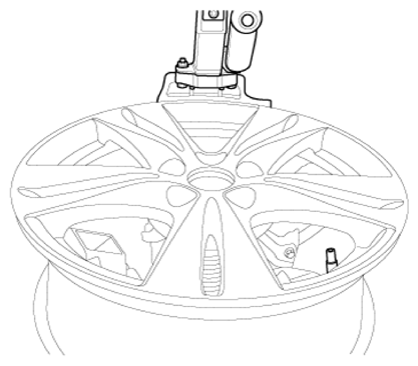

To fit the bottom bead, position the valve at the 5 o'clock position relative to the head on the tire changing machine.

Courtesy of HYUNDAI MOTOR AMERICA

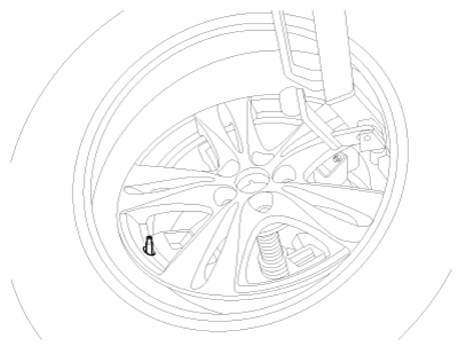

Place the tire on the rim so the bottom bead touches the edge of the rim after the valve (6 o'clock). Rotate the rim clockwise, and push down on the tire at the 3 o'clock position to fit bottom bead.

Courtesy of HYUNDAI MOTOR AMERICA

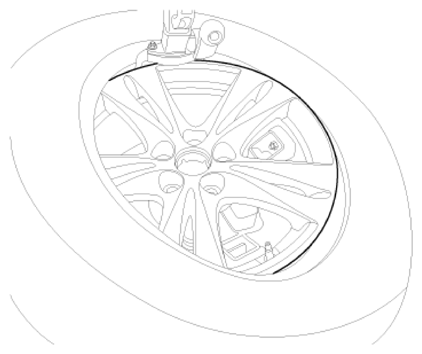

After bottom bead is on tire, rotate the rim until the valve is at the 5 o'clock position relative to the head on the tire changing machine. Push down on the tire at the 3 o'clock position and rotate the rim clockwise to fit the top bead.

Courtesy of HYUNDAI MOTOR AMERICA

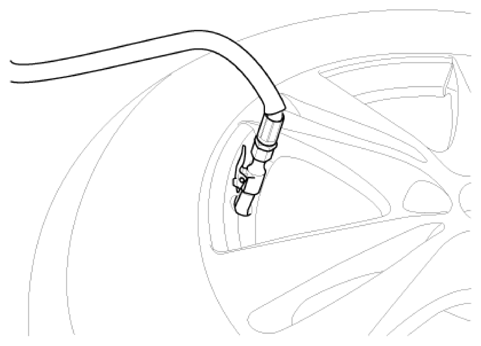

Inflate the tire until both beads seat.
Tire pressure: 250 kPa (36 psi)

Courtesy of HYUNDAI MOTOR AMERICA
