Repair Procedures: Disassembly

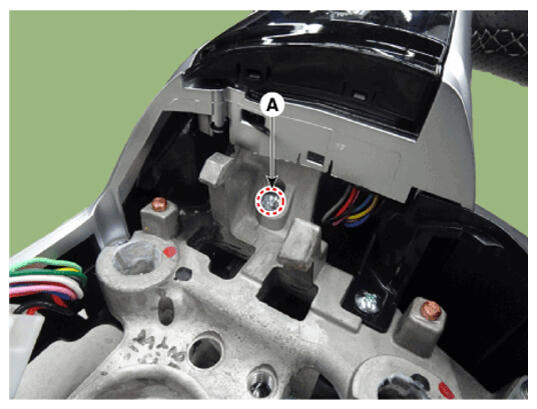

  1. Loosen the paddle shift switch mounting screw (A).

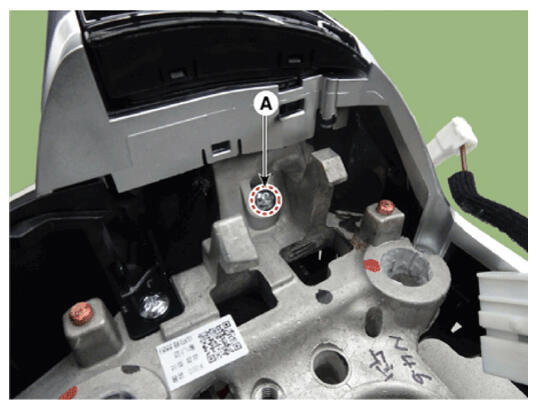

    G16831025Courtesy of HYUNDAI MOTOR AMERICA
    G16831026Courtesy of HYUNDAI MOTOR AMERICA
  2. Remove the paddle shift (A) after disconnecting the connector.

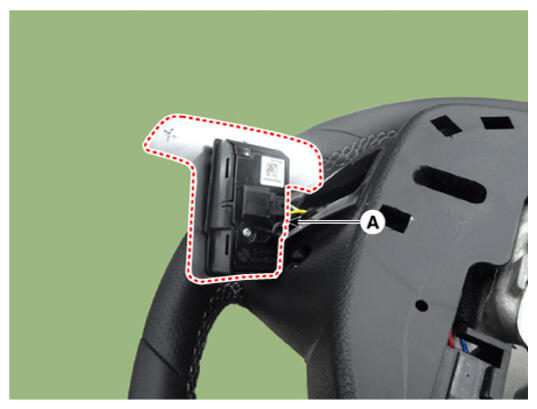

    G16831027Courtesy of HYUNDAI MOTOR AMERICA

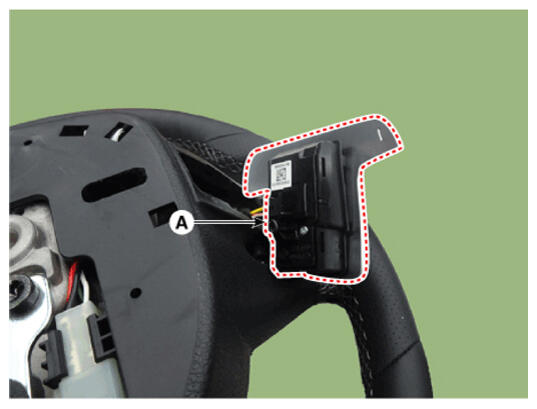

    G16831028Courtesy of HYUNDAI MOTOR AMERICA

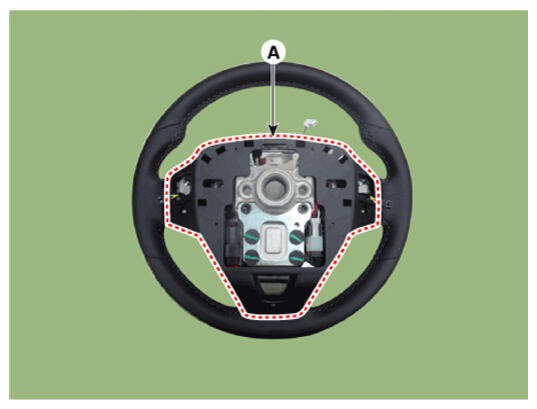

  3. Remove the lower cover (A) after loosening the screw.
    G16831029Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the wiring.

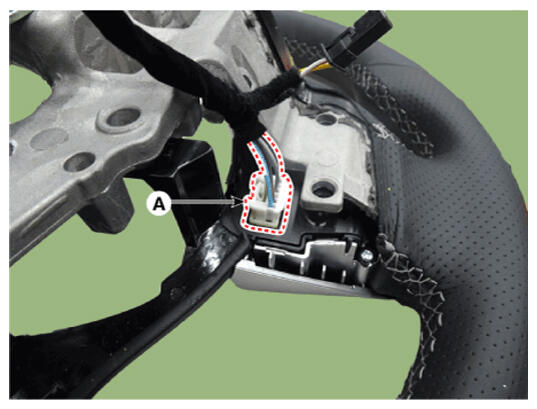

    1. Disconnect the remote control switch connector (A).

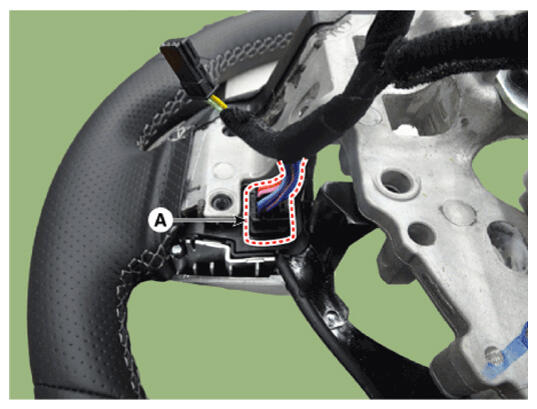

      G16831030Courtesy of HYUNDAI MOTOR AMERICA
      G16831031Courtesy of HYUNDAI MOTOR AMERICA
    2. Disconnect the haptic motor connector (A).

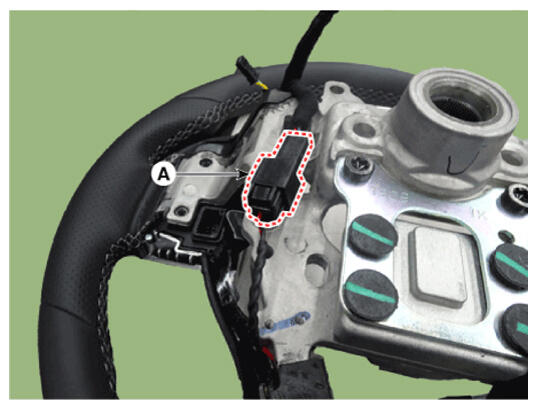

      G16831032Courtesy of HYUNDAI MOTOR AMERICA
    3. Disconnect the heated steering wheel connector (A).

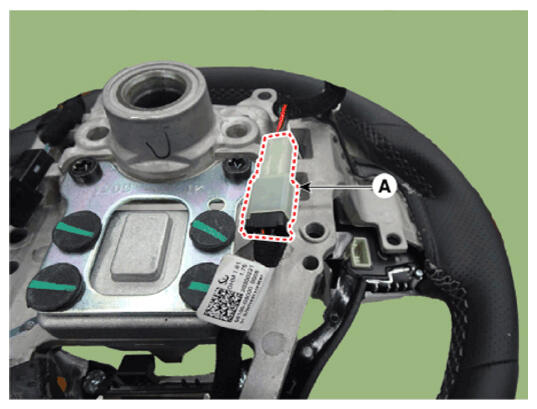

    G16831033Courtesy of HYUNDAI MOTOR AMERICA

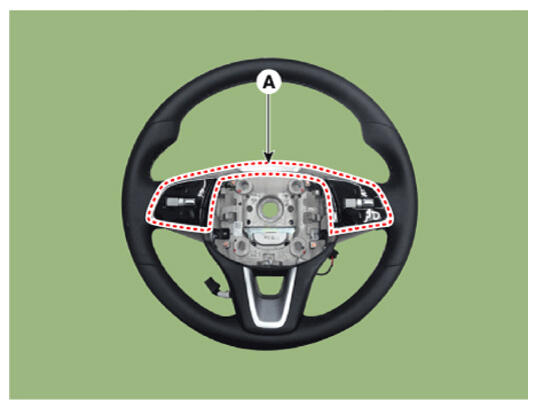

  5. Remove the remote control switch (A).
    G16831034Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the upper cover (A).

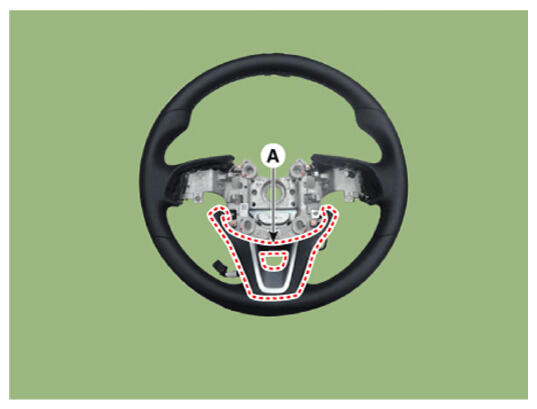

    G16831035Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the haptic motor (A) after loosening the screws.

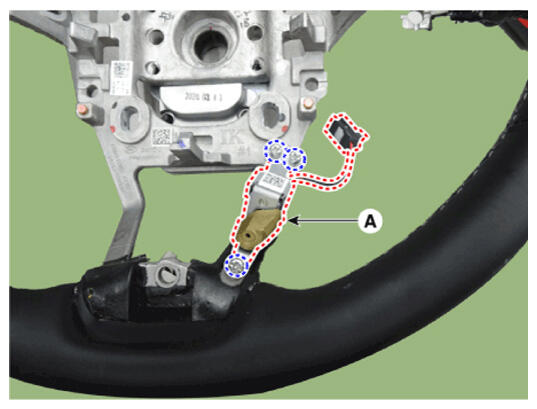

    G16831036Courtesy of HYUNDAI MOTOR AMERICA

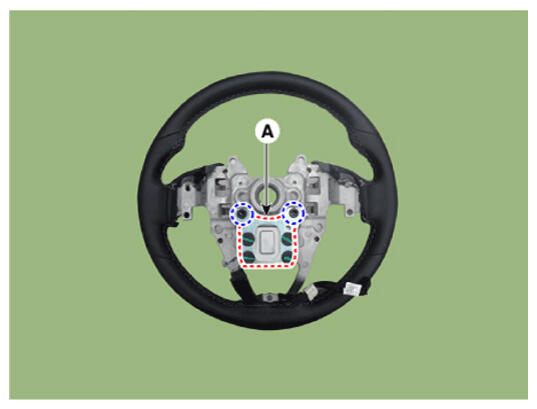

  8. Remove the steering wheel damper (A) after loosening the mounting bolts.
    G16831037Courtesy of HYUNDAI MOTOR AMERICA
