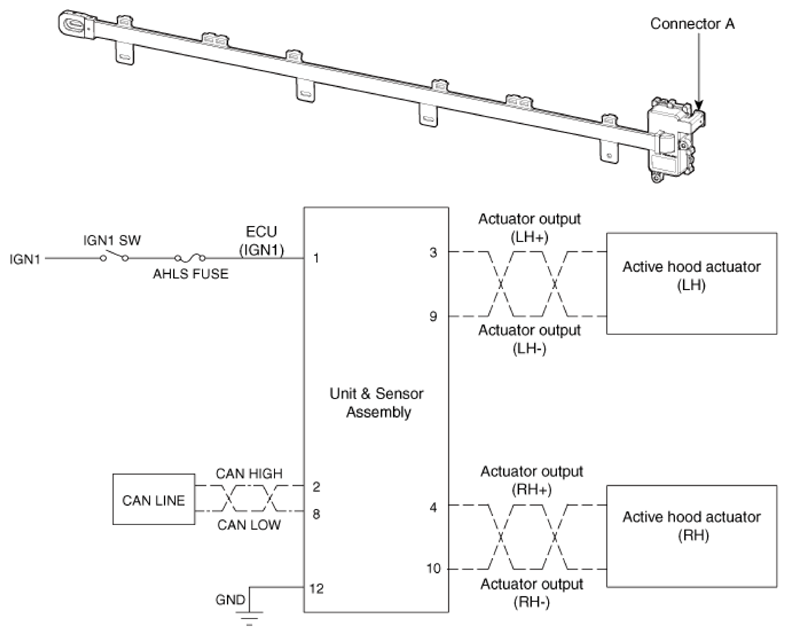

Components Location: Component

Courtesy of HYUNDAI MOTOR AMERICA

Connector A	Pin	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Ignition 1
	2	CAN High
	3	Active hood actuator LH (+)
	4	Active hood actuator RH (+)
	5	-
	6	-
	7	-
	8	CAN Low
	9	Active hood actuator LH (-)
	10	Active hood actuator RH (-)
	11	-
	12	Ground
