Connector Assembly Status Test

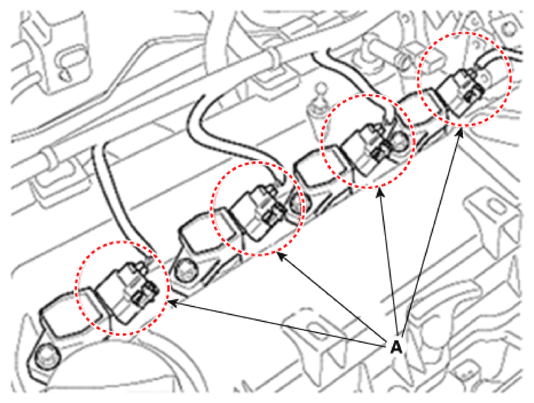

  1. Remove the connector (A) and reinstall it.
    G16829754Courtesy of HYUNDAI MOTOR AMERICA

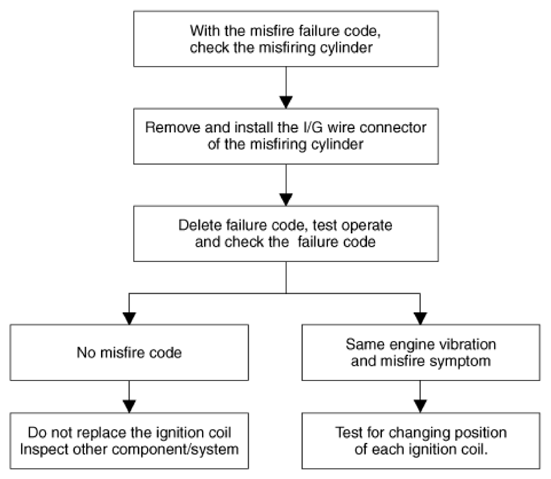

    G16829755Courtesy of HYUNDAI MOTOR AMERICA
