Calibration procedure

  1. Connect the self-diagnosis device. (CAN line or OBD connector)
  2. Turn ignition switch on.
  3. Press calibration button of the Steering Wheel Angle Sensor.
  4. HECU calibration procedure is performed. (Calibration records, DTC codes erasure)

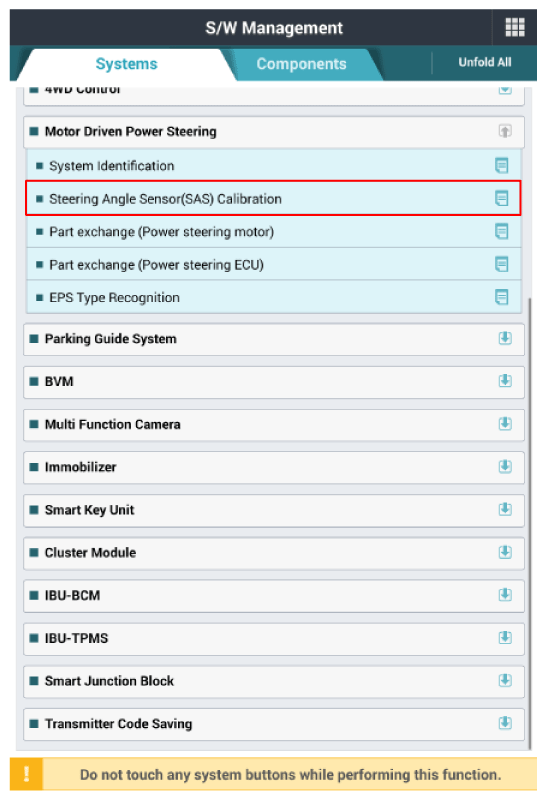

G16831437Courtesy of HYUNDAI MOTOR AMERICA

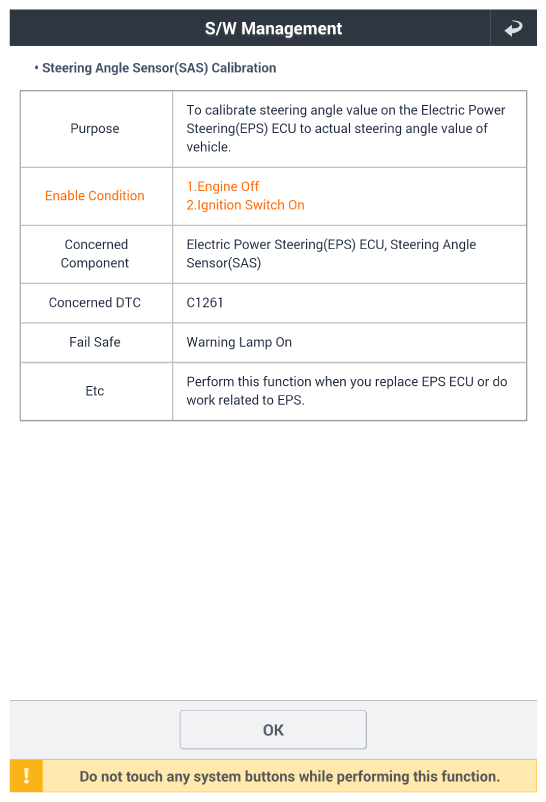

G16831438Courtesy of HYUNDAI MOTOR AMERICA
