Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the negative (-) battery cable.CAUTION:
- Wait at least 30 seconds after separating the cable.
- Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
- Remove the front wheel and tire.
(Refer to Suspension System - "WHEEL ")

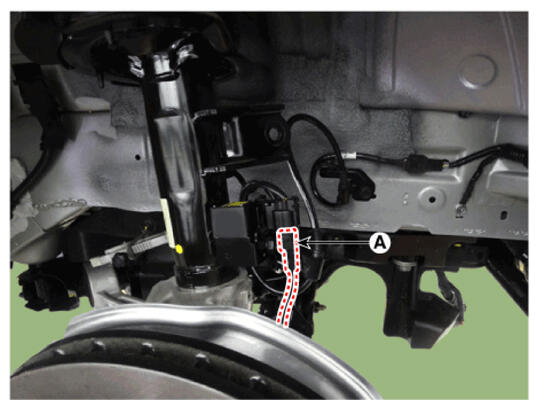

- Remove the wheel speed sensor connector (A).

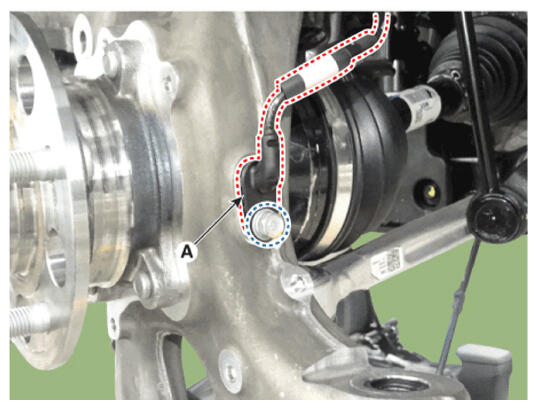

- Disconnect the wheel speed sensor bolt and then wheel speed sensor (A).
Tightening torque:
6.9 - 10.8 N.m (0.7 - 1.1 kgf.m 5.1 - 7.9 ft.lb)
