Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad under cover.

    (Refer to Body - "CRASH PAD UNDER COVER ")

  3. Remove the glove box housing cover.

    (Refer to Body - "GLOVE BOX HOUSING COVER ")

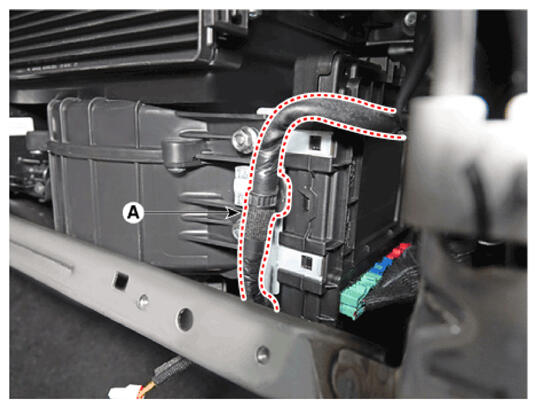

  4. Remove the IBU wiring (A).
    G16832237Courtesy of HYUNDAI MOTOR AMERICA

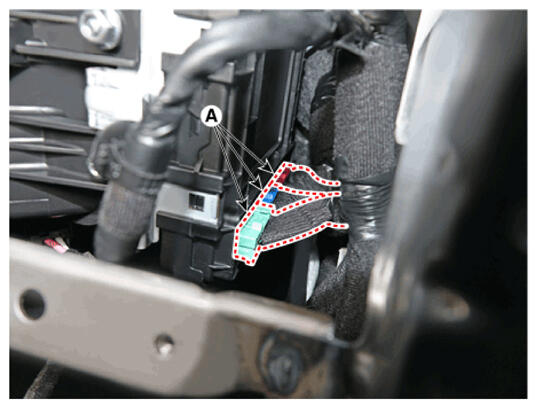

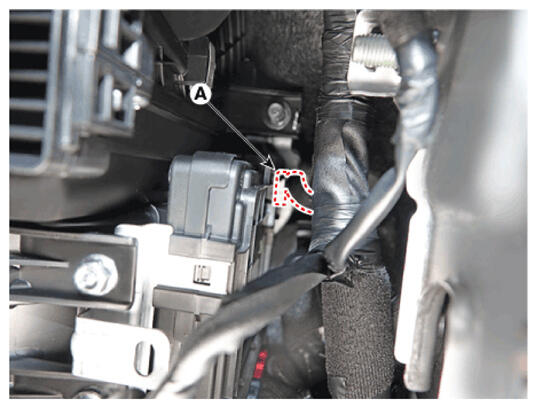

  5. Disconnect the IBU connectors (A).
    G16832238Courtesy of HYUNDAI MOTOR AMERICA
    G16832239Courtesy of HYUNDAI MOTOR AMERICA

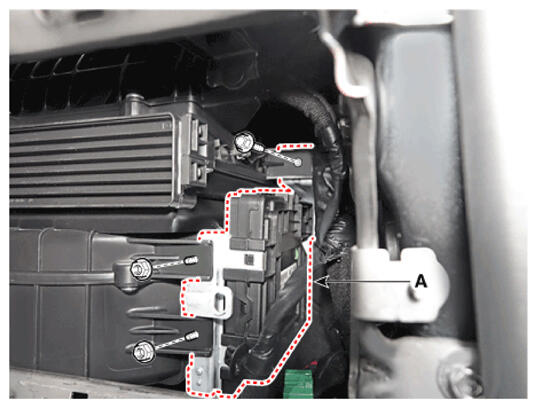

  6. Remove the IBU (A), after loosening the mounting bolt and nuts.
    G16832240Courtesy of HYUNDAI MOTOR AMERICA
