Home >> Genesis >> 2024 >> G70 2.5T, RWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Trunk Module >> Power Trunk Open/Close Switch >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

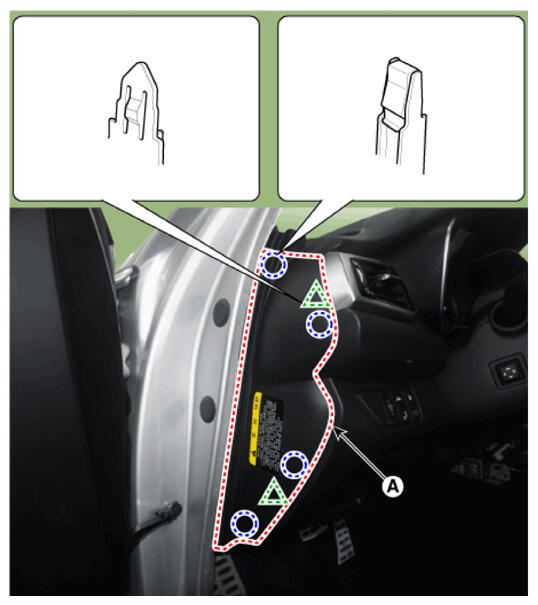

  2. Remove the crash pad side cover [LH] (A).
    G16832597Courtesy of HYUNDAI MOTOR AMERICA

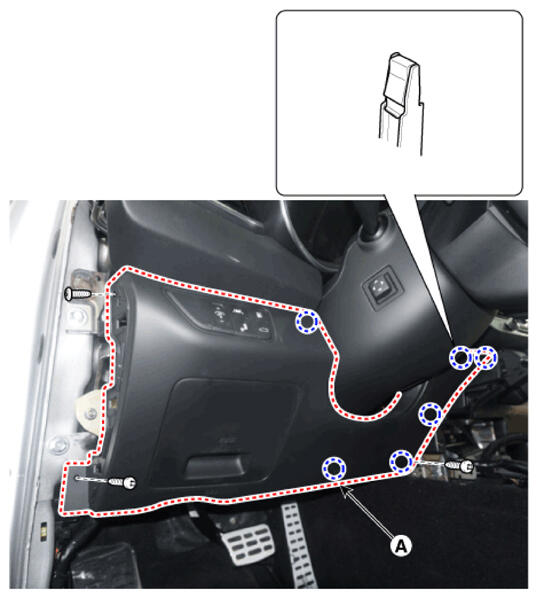

  3. Loosen the mounting screws and remove the crash pad lower panel (A).
    G16832598Courtesy of HYUNDAI MOTOR AMERICA

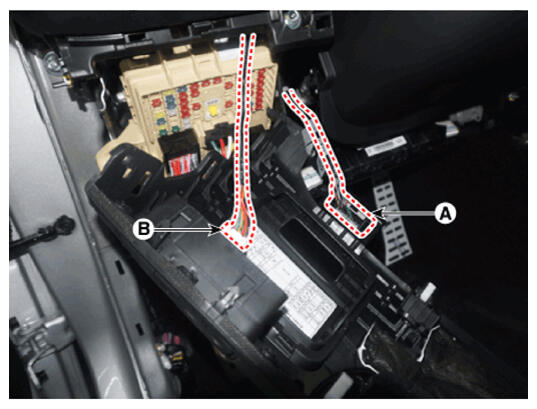

  4. Disconnect the diagnosis connector (A) and lower panel switch connector (B).
    G16832599Courtesy of HYUNDAI MOTOR AMERICA

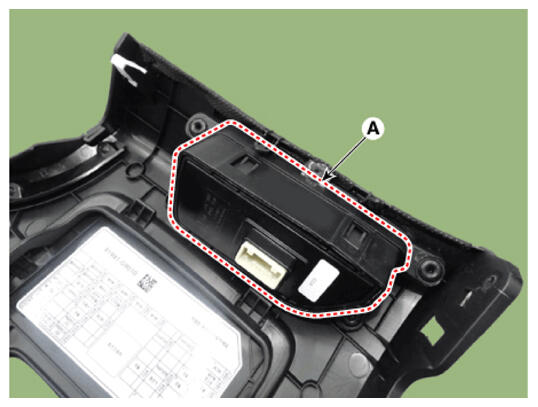

  5. Remove the crash pad lower switch (A) after disengaging the mounting clip.
    G16832600Courtesy of HYUNDAI MOTOR AMERICA
