Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Power Trunk Module
>>
Power Trunk Inner Switch
>>

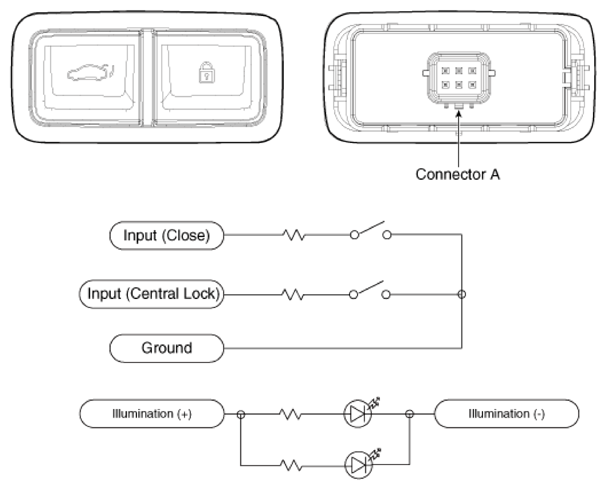

Connector And Terminal Information
Connector And Terminal Information
Courtesy of HYUNDAI MOTOR AMERICA
Connector A
Pin
Description
Courtesy of HYUNDAI MOTOR AMERICA
1
Central Lock
2
-
3
Trunk close
4
Illumination (+)
5
Ground
6
Illumination (-)
Courtesy of HYUNDAI MOTOR AMERICA
