Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk lid trim after opening the trunk.

    (Refer to Body - "TRUNK LID TRIM ")

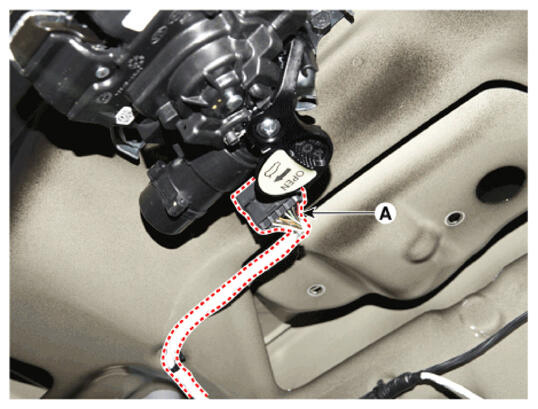

  3. Disconnect the trunk lid latch connector (A).
    G16832584Courtesy of HYUNDAI MOTOR AMERICA

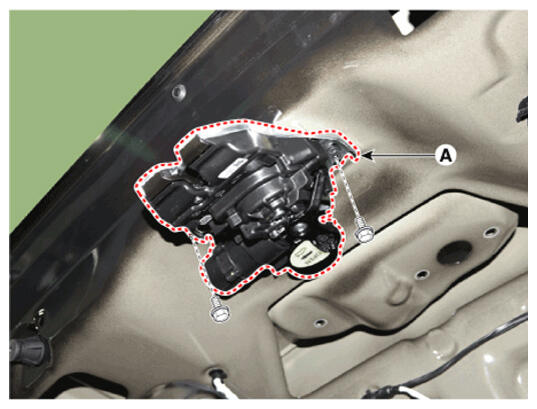

  4. Loosen the mounting bolts, remove the trunk lid latch (A).
    G16832585Courtesy of HYUNDAI MOTOR AMERICA
