Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

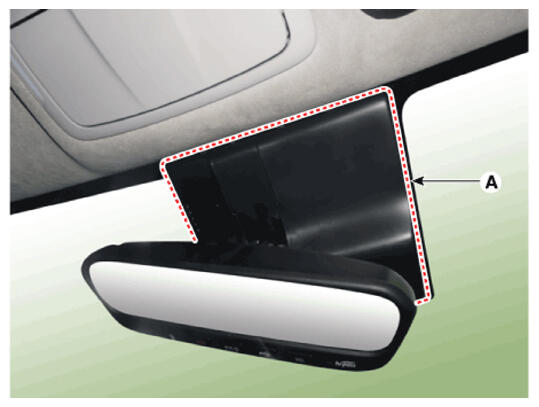

  2. Remove the inside multi cover (A).
    G16832993Courtesy of HYUNDAI MOTOR AMERICA

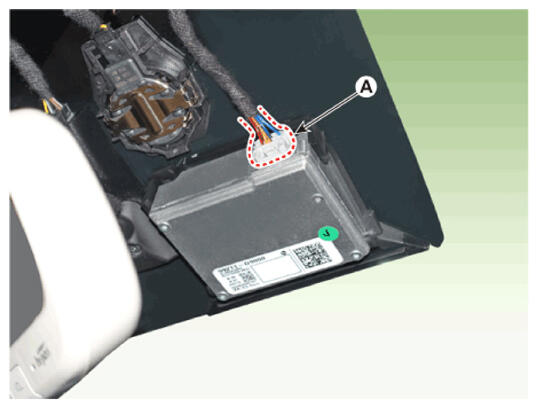

  3. Disconnect the front view camera connector (A).
    G16832994Courtesy of HYUNDAI MOTOR AMERICA

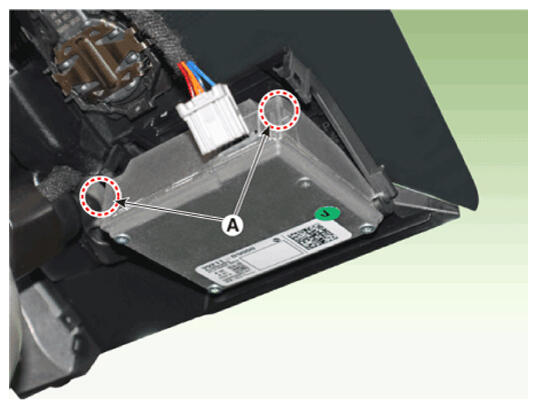

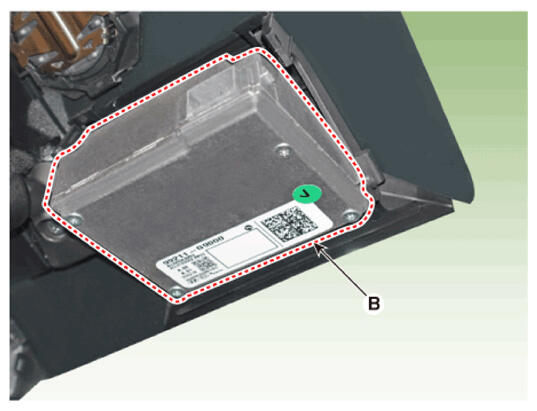

  4. Separate the fixed points (A) of coupler and remove the front view camera (B).
    NOTE:
    • Be careful not to break the hook (A).
    G16832995Courtesy of HYUNDAI MOTOR AMERICA
    G16832996Courtesy of HYUNDAI MOTOR AMERICA
