Repair Procedures: Installation
NOTE:
- Perform the camera calibration in the following case.
(Refer to Front View Camera System - "REPAIR PROCEDURES ")
- If the front view camera is replaced with a new one.
- If the front view camera is removed and mounted.
- If the front view camera coupler of the windshield glass is deformed.
- If the windshield glass is changed.
- When a failure code (System Out of Calibration) occur.
- Install in the reverse order of removal.

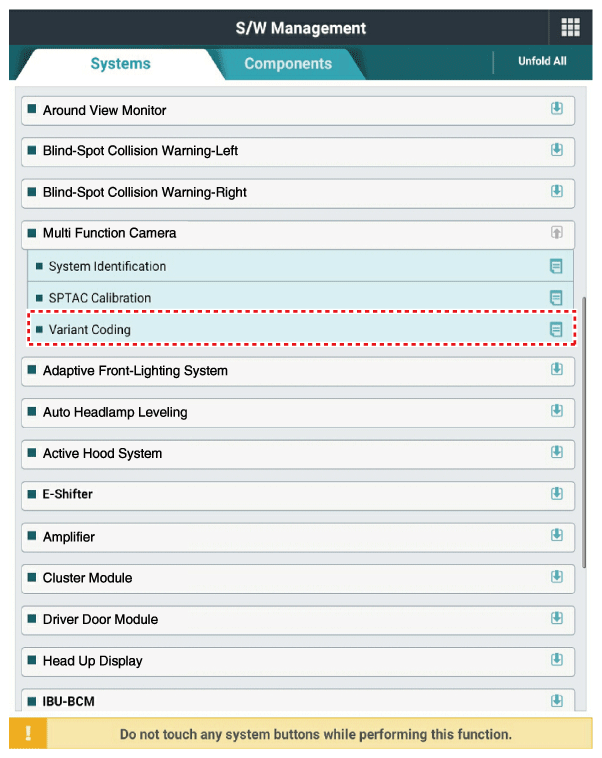

- When if replacing the front view camera with a new one, perform the "Variant Coding" procedure by using the Diagnostic Tools.
- Perform the front view camera unit calibration.
(Refer to Front View Camera System - "REPAIR PROCEDURES ")
