Repair Procedures: Removal

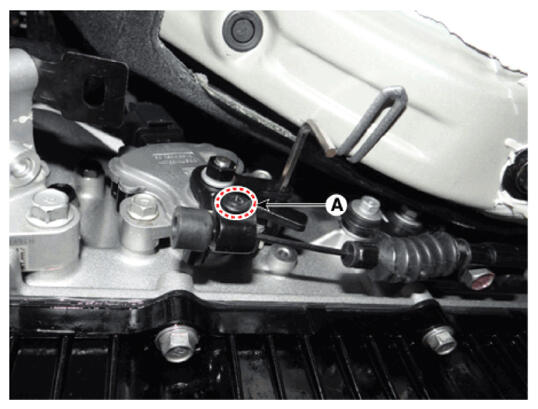

  1. Remove the fastener (A) and then removing the parking cable from the parking release lever.
    G16830437Courtesy of HYUNDAI MOTOR AMERICA

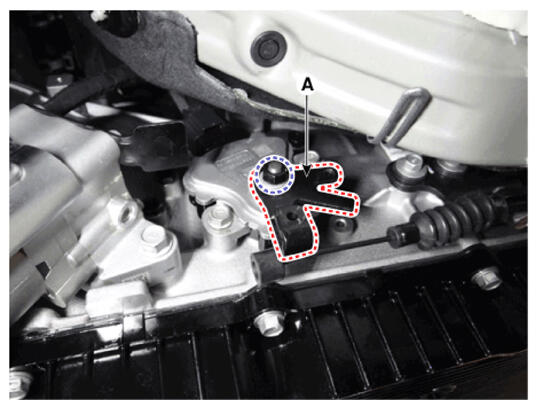

  2. Remove the parking release lever (A) after loosening the nut.
    G16830438Courtesy of HYUNDAI MOTOR AMERICA

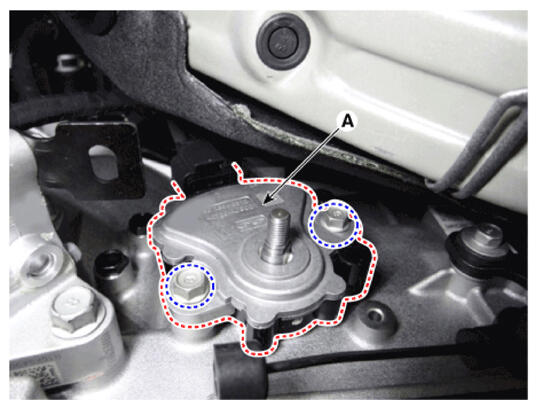

  3. Remove the parking switch (A) after loosening the bolts.
    G16830439Courtesy of HYUNDAI MOTOR AMERICA

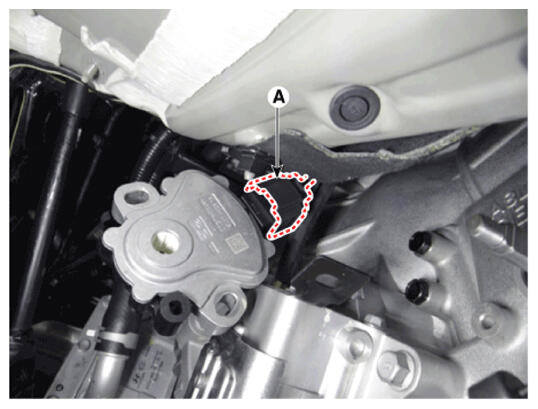

  4. Disconnect the parking switch connector (A).
    G16830440Courtesy of HYUNDAI MOTOR AMERICA
