Repair Procedures: Removal

  1. Remove the console upper cover using the screw driver and remover.
  2. Remove the E-shift lever mounting bolt and then removing the E-shift lever (A).
    G16830454Courtesy of HYUNDAI MOTOR AMERICA

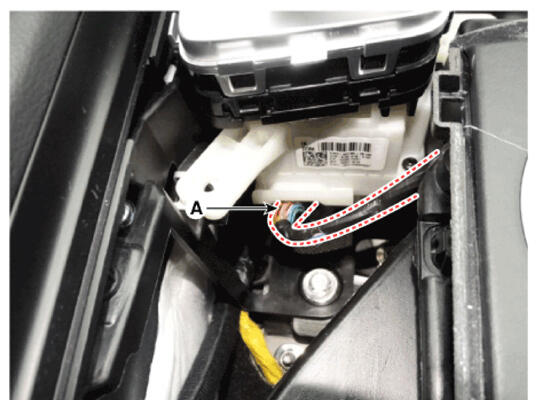

  3. Disconnect the shift lever main connector (A).
    G16830455Courtesy of HYUNDAI MOTOR AMERICA
