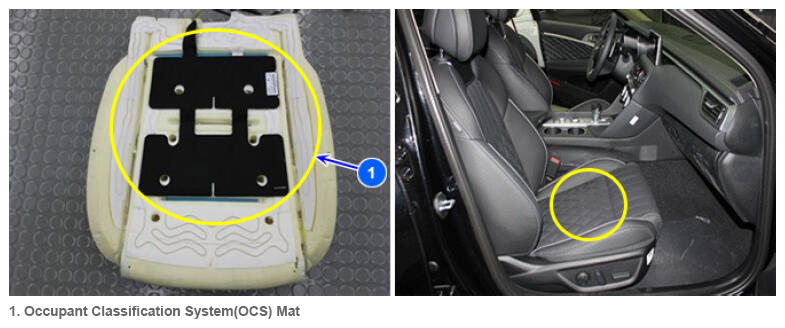

Occupant Classification System (OCS) Mat
In order to make normal activation of airbag system, SRSCM detects DTC(s) for the Occupant Classification System (OCS).
SRSCM recognizes the signal as 2 (two) different classifications that is, 0 (Empty/Child), 1 (Seat Occupied) with these signal, SRSCM determines whether it needs to deploy Passenger Airbag (PAB) or not.
NOTE:
If any of the following conditions occur, Occupant Classification System (WCS, PODS, BOSE).
Reset must be performed again after checking OCS diagnostic codes.
Reset must be performed again after checking OCS diagnostic codes.
- OCS ECU or seat cushion assay is replaced.
- The telltale lamp is not illuminated when the passenger seat is not occupied.
- The telltale lamp is delayed more than 10 seconds to be turned off when an adult passenger seats in.
