Components And Components Location: Component

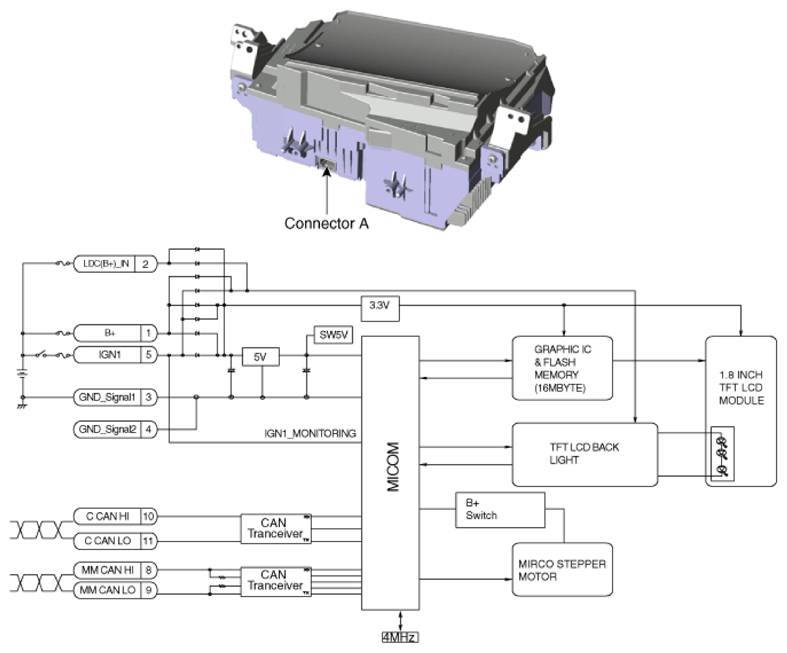

G16832758Courtesy of HYUNDAI MOTOR AMERICA
Connector A Pin Description Pin Description
G16832759Courtesy of HYUNDAI MOTOR AMERICA
 1 Battery (+) 7 -
2 LDC (Battery+) input 8 M-CAN High
3 Ground 1 9 M-CAN Low
4 Ground 2 10 C-CAN High
5 Ignition 11 C-CAN Low
6 - 12 -
