Repair Procedures: Removal

CAUTION:

NOTE:

Remove the roof side molding.
(Refer to Body Side Molding - "ROOF SIDE MOLDING ")
Remove the rear package tray trim.
(Refer to Interior Trim - "REAR PACKAGE TRAY TRIM ")

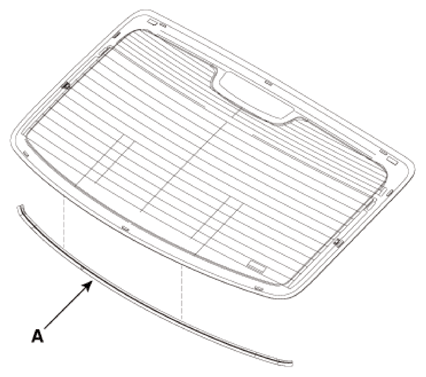

Using a cutting knife, remove the rear window glass molding (A).

Courtesy of HYUNDAI MOTOR AMERICA

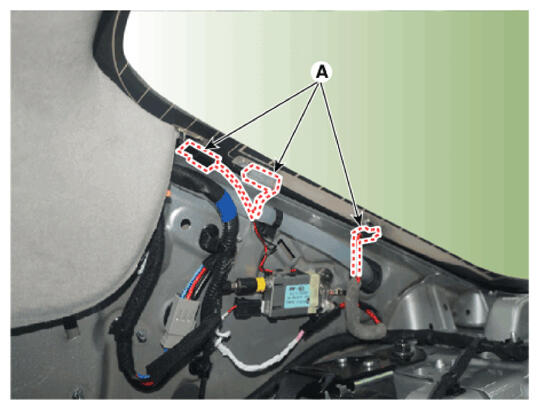

Disconnect the hot wire connector (A).
[LH]

Courtesy of HYUNDAI MOTOR AMERICA

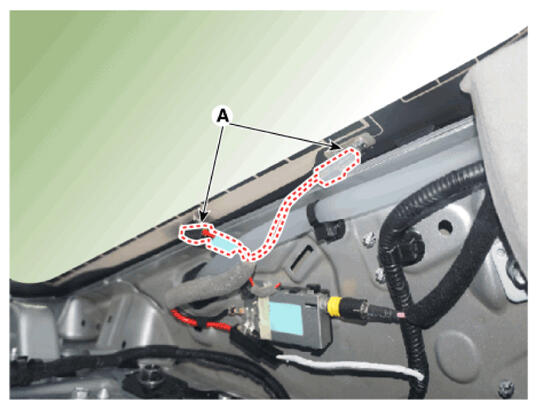

[RH]

Courtesy of HYUNDAI MOTOR AMERICA
Spread WD40 on the outer edges of rear window glass.

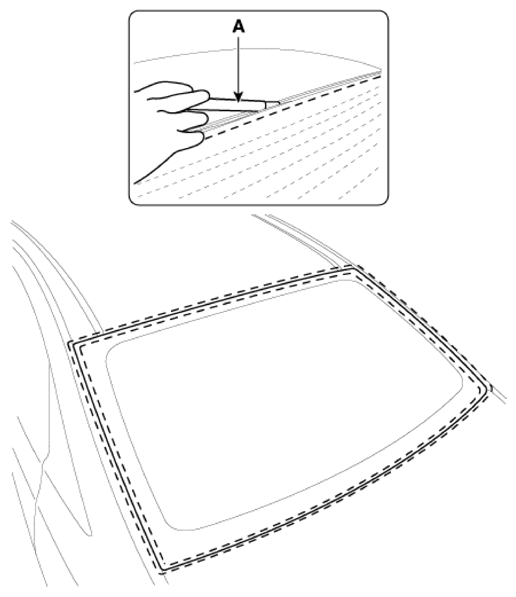

Cut out the adhesive using the cutter (A).

Information

Use the cutter with a 20 to 30 cm-long blade.

Courtesy of HYUNDAI MOTOR AMERICA

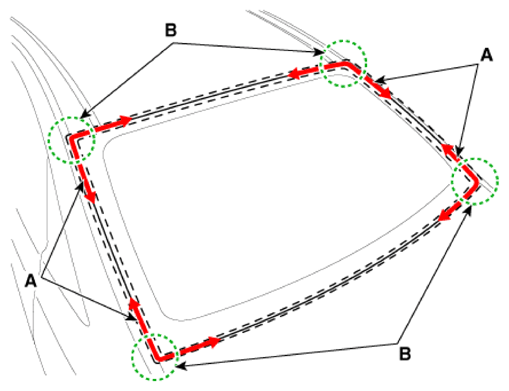

Cut off the sealant on the edge (B) while pulling the piano wire (A) to the left and right.
CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.
Courtesy of HYUNDAI MOTOR AMERICA

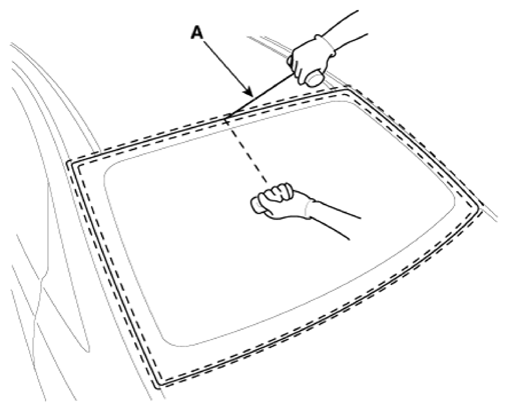

Put in a piano wire (A) through the corner of the windshield glass and insert wire grips into both ends of the wire.

Courtesy of HYUNDAI MOTOR AMERICA

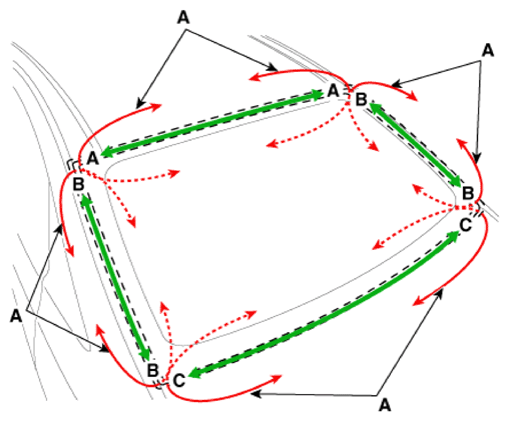

Cut off the sealant on (A-A), (B-B), (C-C), while pulling a piano wire (A) to the left and right.
CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.
Courtesy of HYUNDAI MOTOR AMERICA
Carefully remove the rear window glass (A).

Courtesy of HYUNDAI MOTOR AMERICA
