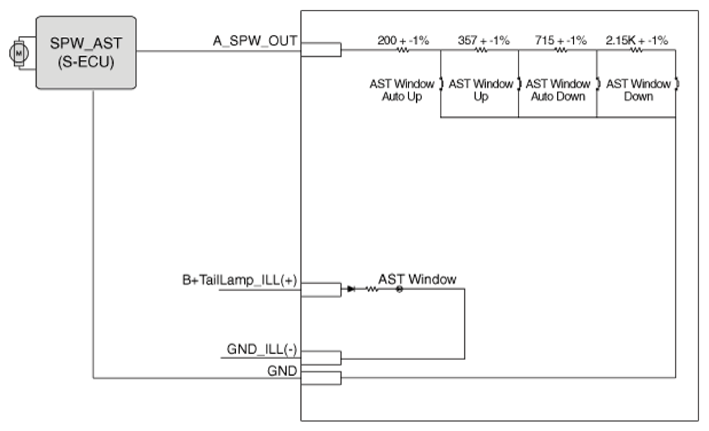

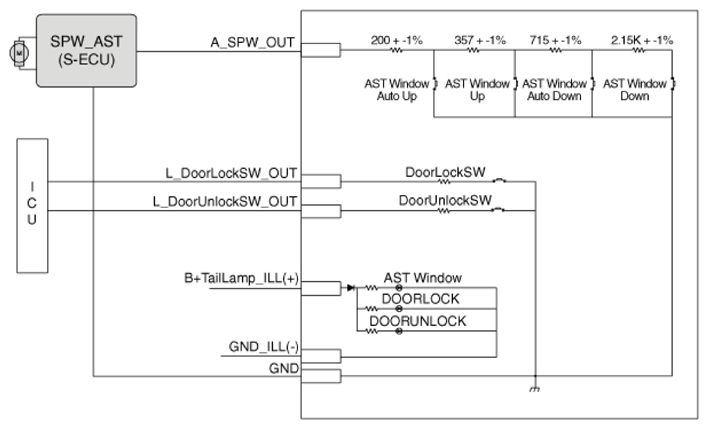

Home >> Genesis >> 2024 >> G70 2.5T, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Switch >> Schematic Diagrams >> Circuit Diagram >> Driver Power Window Switch >> Assist Power Window Switch
