Repair Procedures: Replacement

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

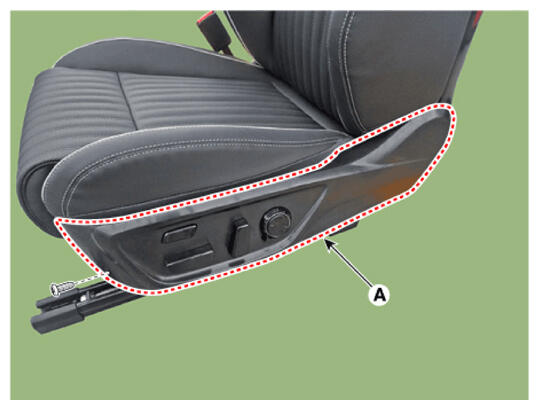

1. After loosening the mounting screws, remove the extension front cover (A).

   Courtesy of HYUNDAI MOTOR AMERICA

   Information

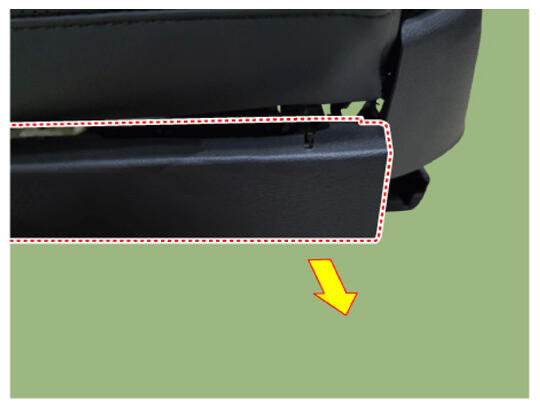

   • Remove the extension cover by pulling it forward.

     Courtesy of HYUNDAI MOTOR AMERICA

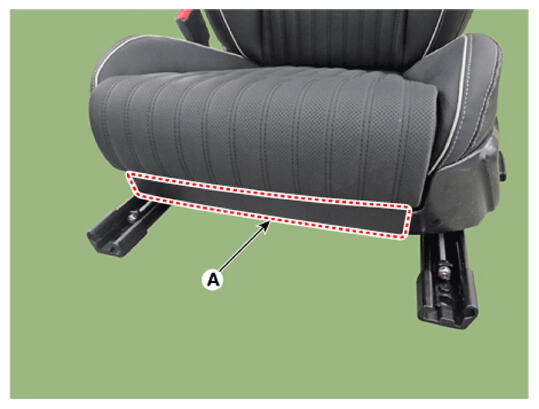

2. Using a screwdriver or remover, remove the front seat shield outer cover (A).

   Courtesy of HYUNDAI MOTOR AMERICA

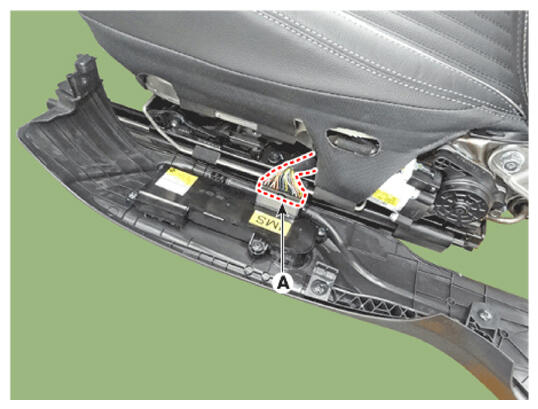

3. Disconnect the front seat power switch connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

4. To install, reverse the removal procedure.

   Information

   • Make sure the connector is plugged in properly.
   • Replace any damaged clips (or pin-type retainers).
