Repair Procedures: Replacement

CAUTION:

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

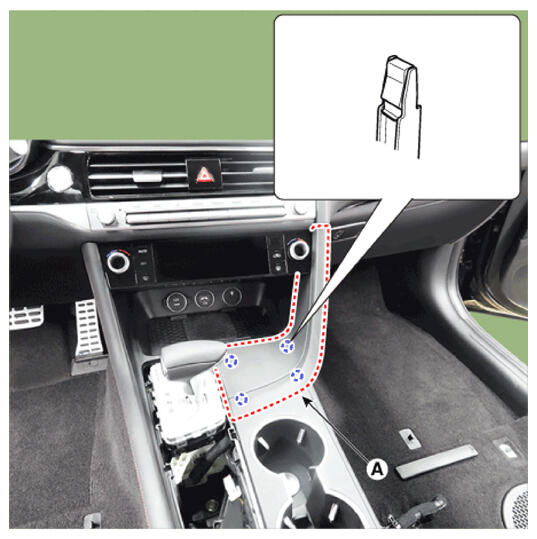

Using a screwdriver or remover, remove the console upper cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

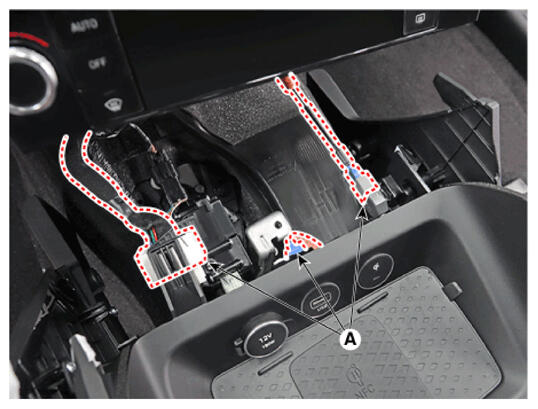

Disconnect the console upper cover switch connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

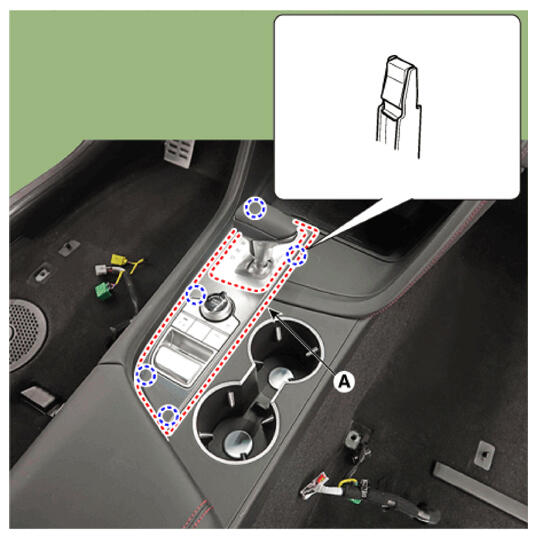

Using a screwdriver or remover, remove the floor console garnish [RH] (A).

Courtesy of HYUNDAI MOTOR AMERICA

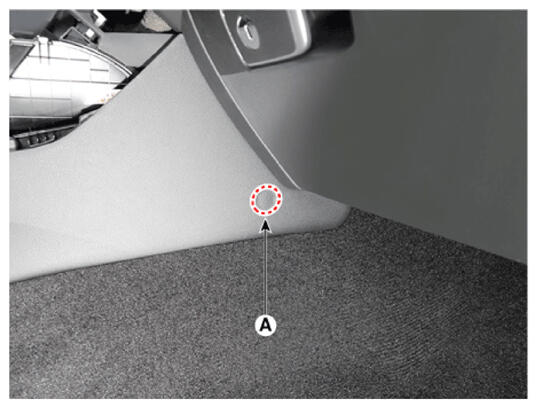

Remove the console side bolt service hole (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

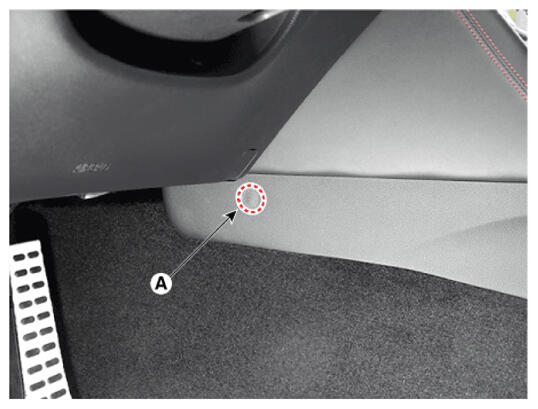

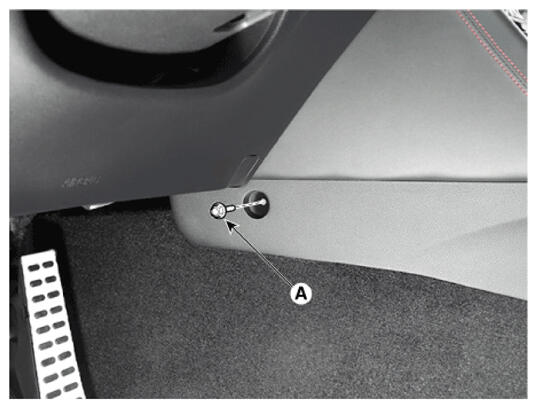

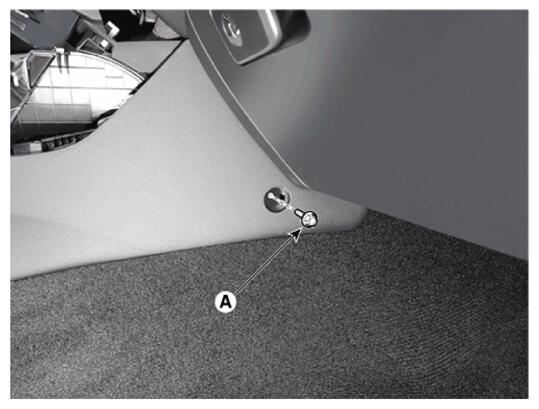

Remove the floor console side bolts (A).
Tightening torque

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

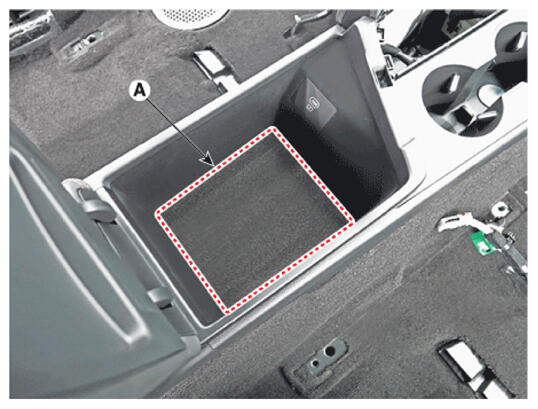

Remove the storage box mat (A).

Courtesy of HYUNDAI MOTOR AMERICA

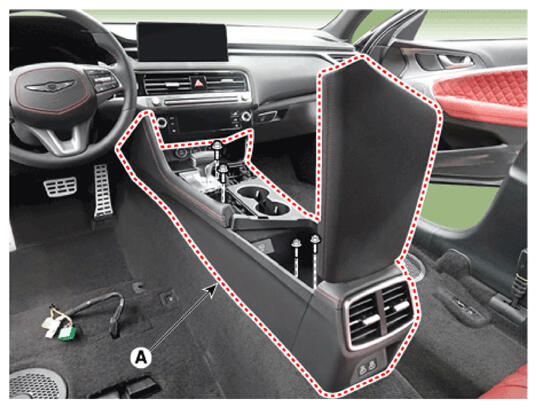

Remove the console complete assembly (A), after removing the bolts.
Tightening torque

Bolt: 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

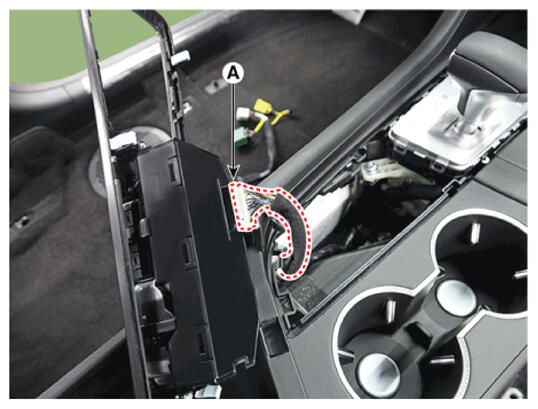

Disconnect the floor console connectors (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
- Make sure the connector is connected properly.
