Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the driver airbag module.
(Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

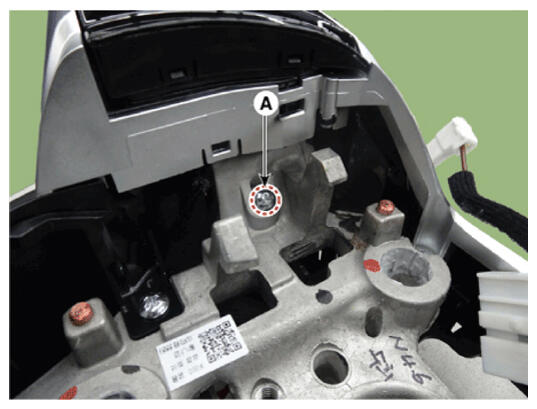

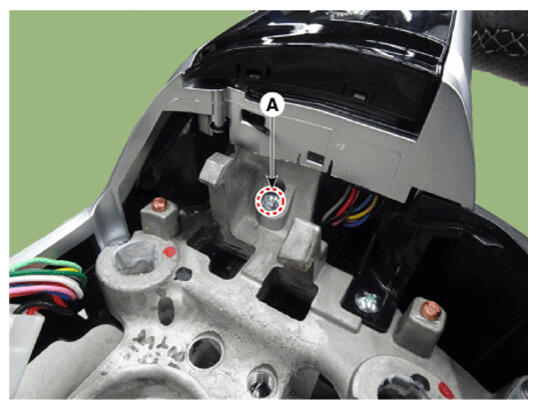

Loosen the paddle shift switch mounting screw (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

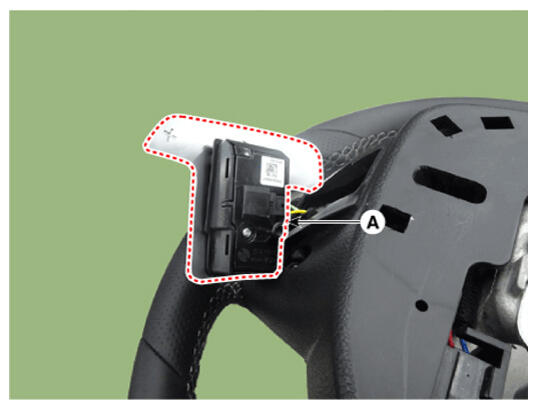

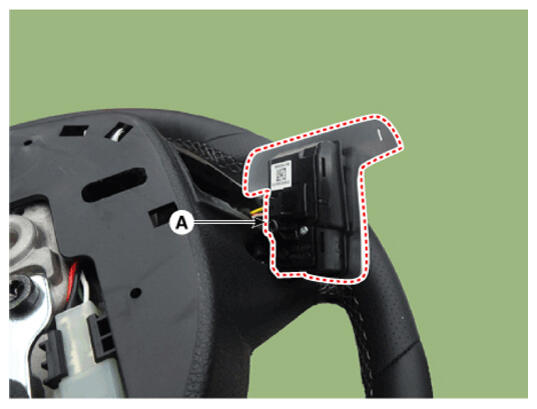

Remove the paddle shift (A) after disconnecting the connector.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

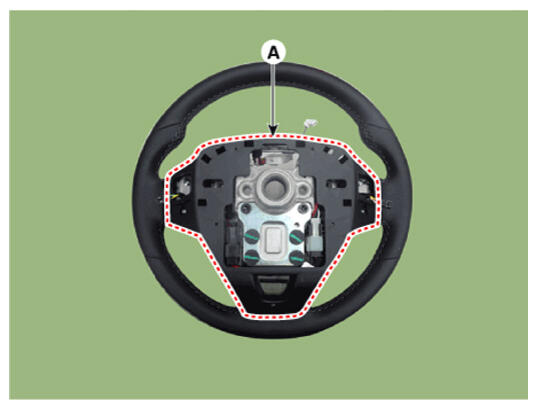

Remove the lower cover (A) after loosening the screw.

Courtesy of HYUNDAI MOTOR AMERICA

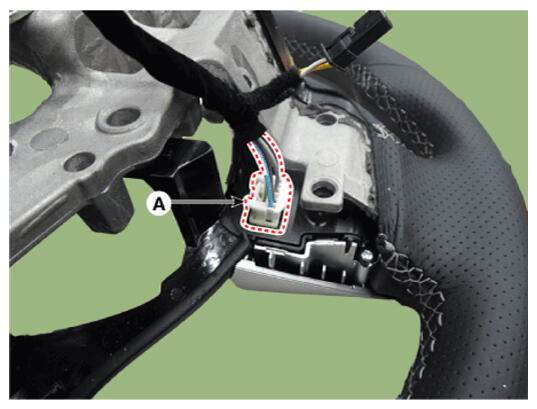

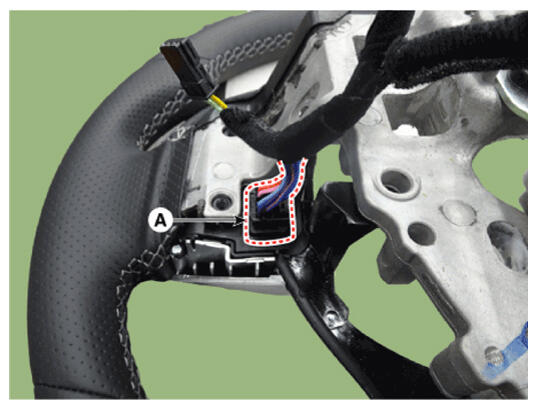

Disconnect the remote control switch connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

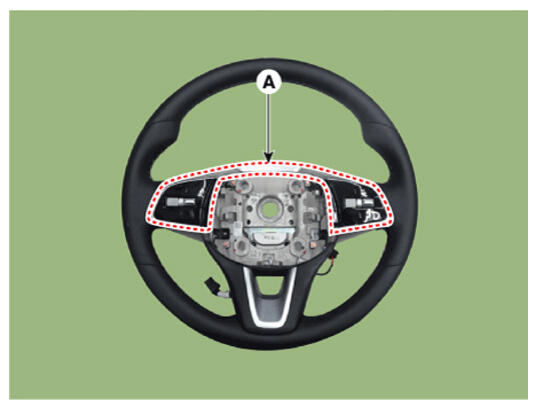

Remove the remote control switch (A).

Courtesy of HYUNDAI MOTOR AMERICA
