Repair Procedures: Inspection

  1. Disconnect the negative (-) battery terminal.
  2. Disconnect the connector (B).
  3. Remove the overhead console (A) after loosening the screws.

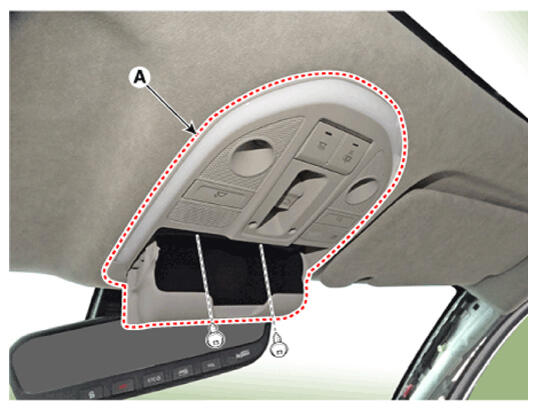

    G16832218Courtesy of HYUNDAI MOTOR AMERICA

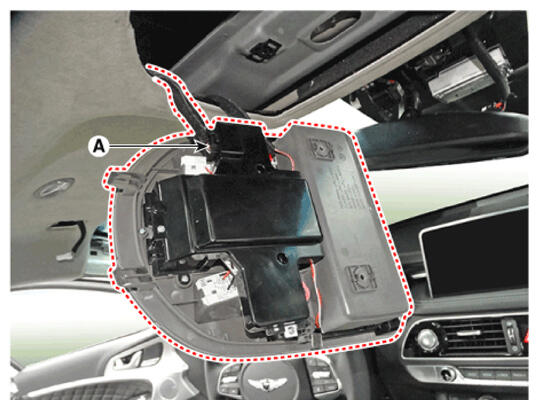

    G16832219Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the mic (A) after loosening the screws.

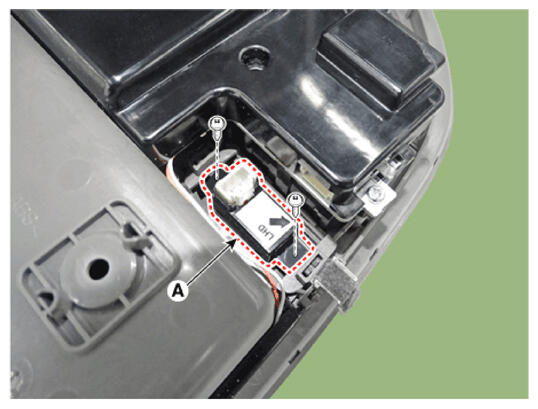

    G16832220Courtesy of HYUNDAI MOTOR AMERICA
  5. Check for the continuity between the mic terminals.
