Repair Procedures: Removal
CAUTION:
Take care not to scratch the crash pad and related parts.
- Disconnect the negative (-) battery terminal.
- Remove the crash pad center panel [RH].
(Refer to Body - "CRASH PAD CENTER PANEL ")

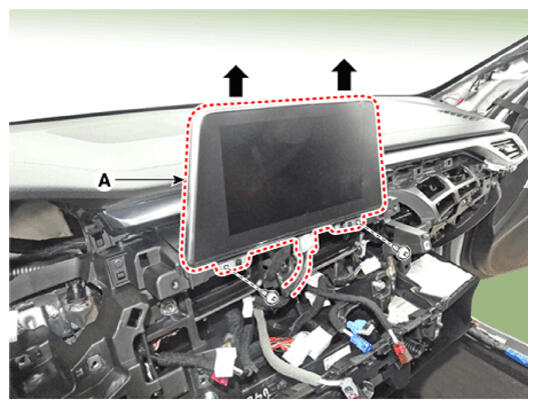

- Remove the front LCD monitor after loosening the mounting screws.
- Disconnect the connector (B).
