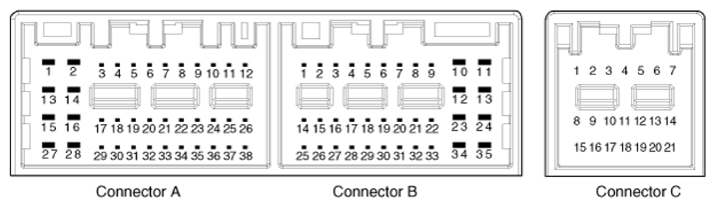

Connector Pin Information
| No | Connector A (External Amplifier) |
Connector A (Internal Amplifier) |
Connector B | Connector C |
|---|---|---|---|---|
| 1 | - | Rear door speaker LH (+) | Mic2 (+) | - |
| 2 | - | Rear door speaker LH (-) | Mic1 (+) | I-CAN (High) |
| 3 | Navigation voice (+) | - | - | - |
| 4 | External amplifier SPDIF (+) | - | - | - |
| 5 | - | - | - | - |
| 6 | Camera power (RVM) | Camera power (RVM) | Illumination (+) | - |
| 7 | Camera video (RVM) | Camera video (RVM) | M-CAN (High) | - |
| 8 | - | - | - | - |
| 9 | - | - | - | I-CAN (Low) |
| 10 | - | - | Battery (+) | - |
| 11 | USB_DETECT | USB_DETECT | Battery (+) | - |
| 12 | - | - | Ground | - |
| 13 | - | Front door speaker LH (+) | Ground | - |
| 14 | - | Front door speaker LH (-) | Mic2 (-) | - |
| 15 | - | Front door speaker RH (-) | Mic1 (-) | - |
| 16 | - | Front door speaker RH (+) | - | MTS |
| 17 | Navigation voice (-) | - | - | - |
| 18 | External amplifier SPDIF (-) | - | - | - |
| 19 | External amplifier SPDIF (Ground) | - | Illumination (-) | - |
| 20 | Camera power_Ground (RVM) | Camera power_Ground (RVM) | M-CAN (Low) | - |
| 21 | Camera video ground (RVM) | Camera video ground (RVM) | - | - |
| 22 | - | - | ACC | |
| 23 | - | - | - | |
| 24 | - | - | Monitor B+ | |
| 25 | - | - | - | |
| 26 | Steering wheel key & MTS key ground | Steering wheel key & MTS key ground | - | |
| 27 | - | Rear door speaker RH (-) | - | |
| 28 | - | Rear door speaker RH (+) | - | |
| 29 | - | - | - | |
| 30 | - | - | - | |
| 31 | - | - | - | |
| 32 | SVM camera equipment detect (GND) | SVM camera equipment detect (GND) | - | |
| 33 | Camera video shield (RVM) | Camera video shield (RVM) | IGN 1 | |
| 34 | - | - | - | |
| 35 | - | - | Monitor ground | |
| 36 | - | - | ||
| 37 | - | - | ||
| 38 | Vehicle speed | Vehicle speed |
