Schematic Diagrams
>>

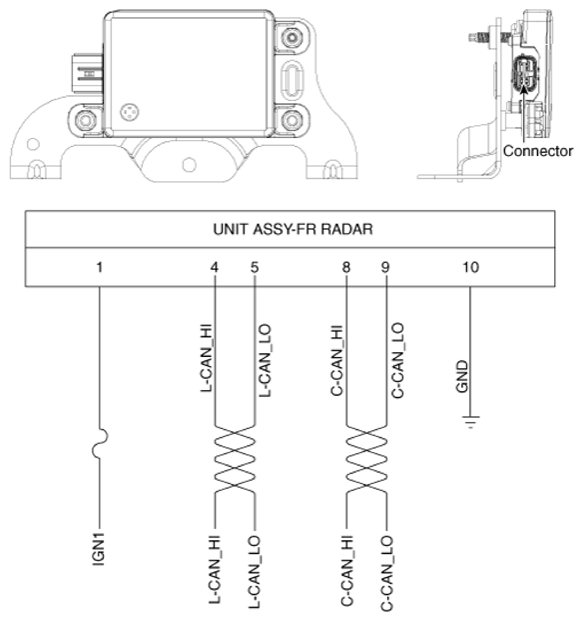

Circuit Diagram
Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Connector
Pin
Description
Pin
Description
Courtesy of HYUNDAI MOTOR AMERICA
1
IGN 1
6
-
2
-
7
-
3
8
C-CAN (High)
4
L-CAN (High)
9
C-CAN (Low)
5
L-CAN (LOW)
10
Ground
Courtesy of HYUNDAI MOTOR AMERICA
