System Operation
FCA: Forward Collision-avoidance Assist)

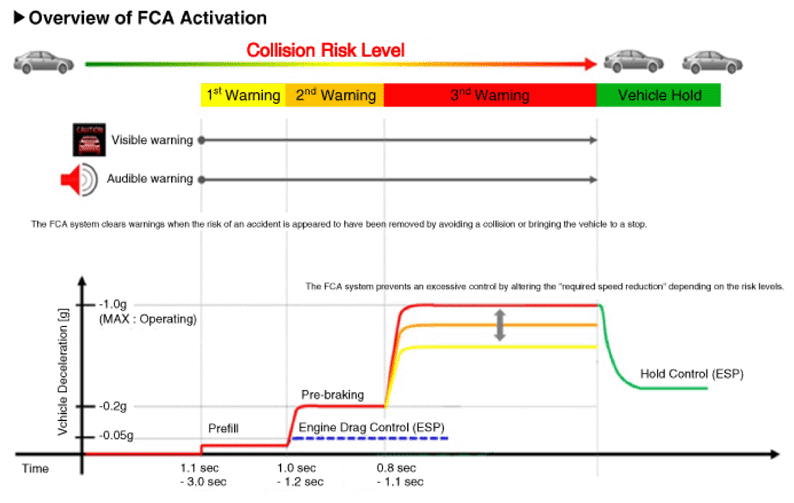

- Basic specification (front view camera applied)
* The time indicated will be changed according to vehicle speeds.
- Step 1: Issue a visual (display) and vocal alarm when a danger is detected.
- Step 2: Reduce engine torque and activates FCA when there is a high chance of collision.
- Step 3: Activate emergency brake when a collision is imminent.
- After stopping the vehicle: Maintain the braking control for a certain time and then release it.
Information
- Braking power is adjusted depending on the risk levels of collision, but it is released immediately when it detects the driver's action to avoid a collision.
- When it exceeded the maximum operation speed.
- When it detected driver's action to avoid a collision such as sudden steering changes.
- When the shift lever is in R or P
- When you pressed the accelerator pedal half way.

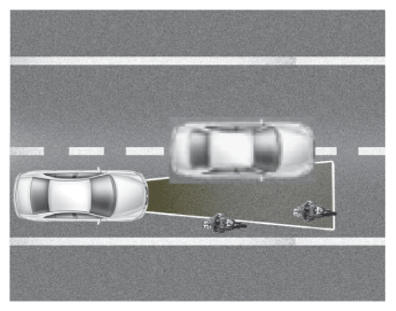

CAUTION:- Offset should be less than 50%.
- FCA does not work on the vehicles backing up or resisting.
Information

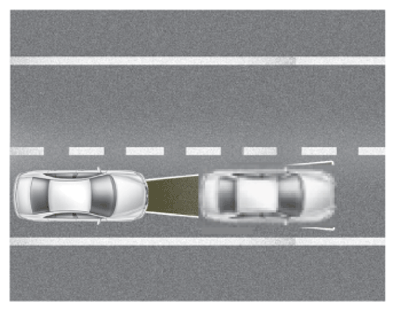

Offset: Rate of non-overlapping on the line between the front driving car and my car
SCC: Smart Cruise Control

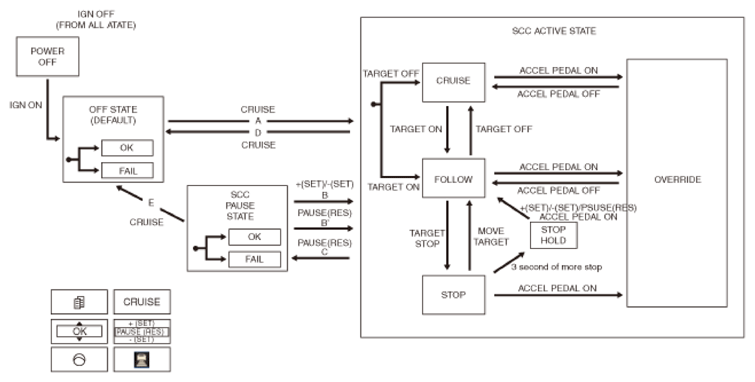

- Smart cruise control operating mode.
Information
- SCC: Smart Cruise Control
- CC: Cruise Control
- Smart cruise control operating conditions.
- Vehicle speed at approximately 0-180 km/h (0-110 mph)
- Transmission in D or Sports mode
- "ESP OFF" switch OFF
- "Driving Assist" button ON (CRUISE indicator ON)
- Smart cruise control disabling conditions
- "Driving Assist" button OFF
- Brake pedal applied
- Driver's door opened
- Vehicle speed at more than approximately 200 km/h (124 mph)
- Vehicle speed at less than approximately 10 km/h (5 mph)
- Transmission in N or P or R
- ESP/TCS/ABS certain period of time operating
- An accelerator pedal applied for more than 5 min
- ESP OFF" switch ON (ESP OFF indicator ON)
- Parking brake applied
- System failure (The warning indicator ON)
- Crack, damage or wrong installation of smart cruise control unit cover (The warning indicator ON)
