System Function
The Rear Corner Radar (RR_C_RDR) supports the functions below using the detecting information (vehicle/2-wheeled vehicle) of the rear corner radar, recognition information (lane) of the front camera and the vehicle signal information (CAN communication).

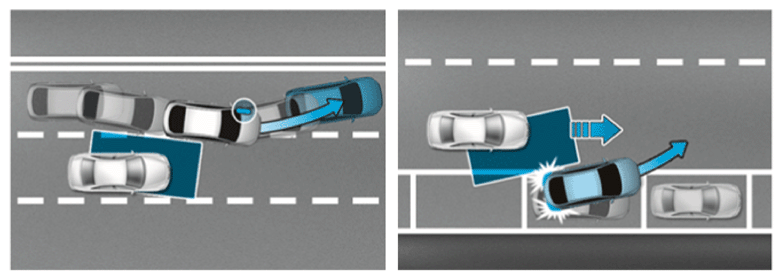

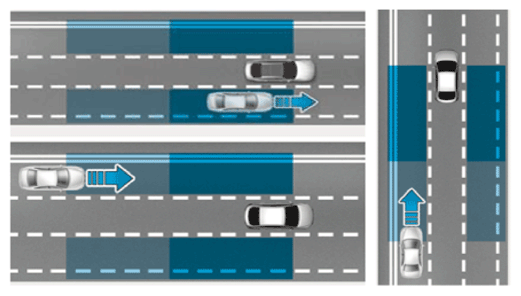

- BCW (Blind-Spot Collision Warning): It detects the vehicles approaching from the blind spot and informs the driver of a possible collision with a warning message and audible warning while driving at the speed of over specific speed.
Also, when you are driving forward to exit the vehicle, it helps braking to avoid collision if the system judges that there is a collision risk with the vehicle approaching from the rear corner.
- BCA (Blind-Spot Collision-Avoid Assist): It assists the collision avoidance by controlling the brake partially if the system judges that there is a collision risk with the vehicle approaching from the rear corner when changing lanes by detecting the lane ahead.
Also, when you are driving forward to exit the vehicle, it helps braking to avoid collision if the system judges that there is a collision risk with the vehicle approaching from the rear corner.

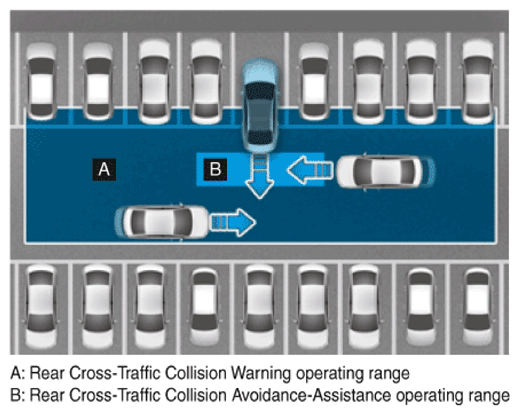

- RCCW (Rear Cross-Traffic Collision Warning): It warns the driver with a warning message and an audible warning if the system judges that there is a collision risk with the vehicle approaching from the left and right sides while your vehicle is reversing.
- RCCA (Rear Cross-Traffic Collision-Avoidance Assist): It warns the driver with a warning message and an audible warning and helps braking to avoid collision if the system judges that there is a collision risk with the vehicle approaching from the left and right sides while your vehicle is reversing.
