Liftgate Side Trim

  1. Remove the liftgate upper trim.

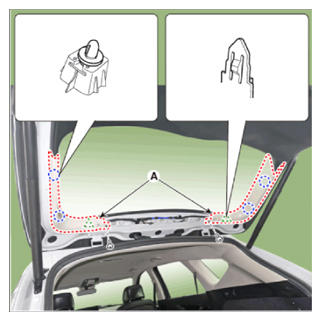

  2. Loosen the mounting screws and remove the side trim (A).
    G14723135Courtesy of HYUNDAI MOTOR AMERICA
  3. To install, reverse removal procedure.

    Information

    • Replace any damaged clips.
