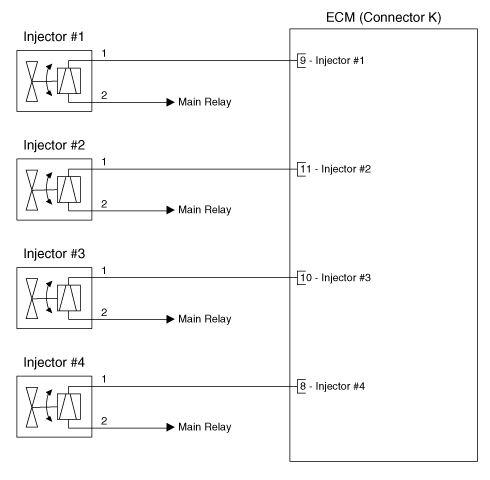

MPI Injector: Notes

WARNING: This page is about a different variant/trim than selected.

G14721407

Courtesy of HYUNDAI MOTOR AMERICA
