Removal And Installation
- Remove the ignition coil. (Refer to Engine Electrical System - "IGNITION COIL ")

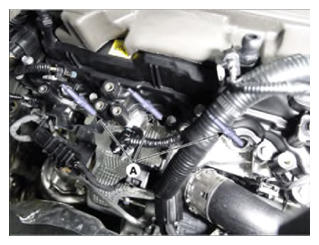

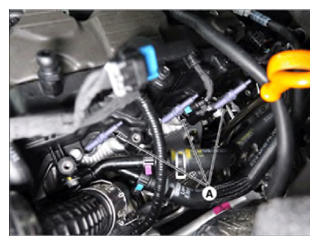

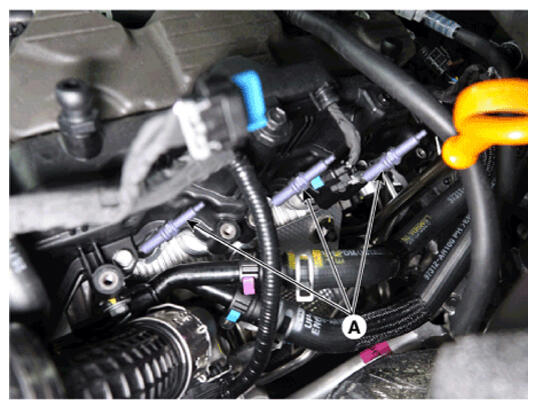

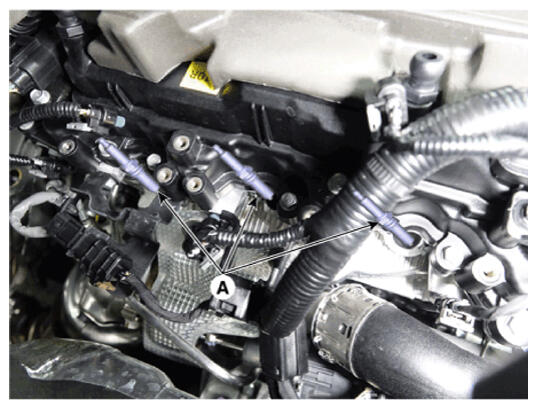

- Using a spark plug wrench, remove the spark plugs (A).
Tightening torque:
15.7-23.5 N.m (1.6 - 2.4 kgf.m, 11.6-17.4 Ib-ft)
[Cylinder #1,#3, #5]
[Cylinder #2, #4, #6]
NOTE:- Be careful that no contaminates enter into spark plug holes.
- Install in the reverse order of removal.
