Power Window Main Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

  3. Disconnect the power window switch connector (A).
    G14764709Courtesy of HYUNDAI MOTOR AMERICA

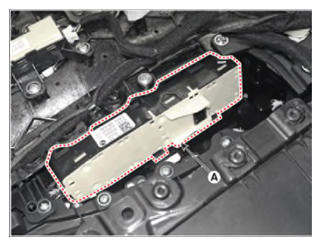

  4. Disengage the mounting clip and then remove the power window switch assembly (A).
    G14764710Courtesy of HYUNDAI MOTOR AMERICA
