SAS Calibration Procedures
NOTE:
- You can use a scan tool to (diagnostic tool) check if the battery voltage is proper before perform the "SAS Calibration".
- Make sure that no connector engaged to the vehicle or scan tool is disconnected during the "SAS Calibration".
- Once the "SAS Calibration" is complete, turn off the IG switch and wait for 10 seconds or more before starting the engine to check the operation.
- Connect self - diagnosis connector (16 pins) located in the lower of driver side crash pad to self - diagnosis device.
- Turn the self - diagnosis device after key is ON.
- Turn the steering wheel to straight ahead position.

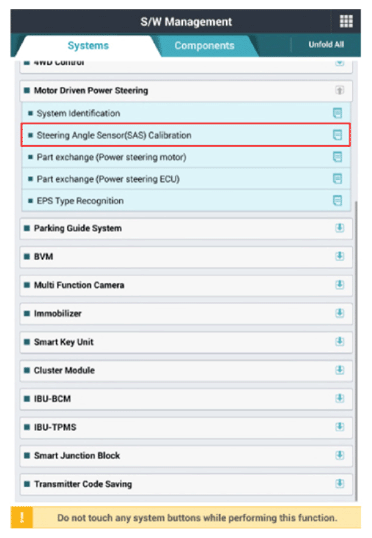

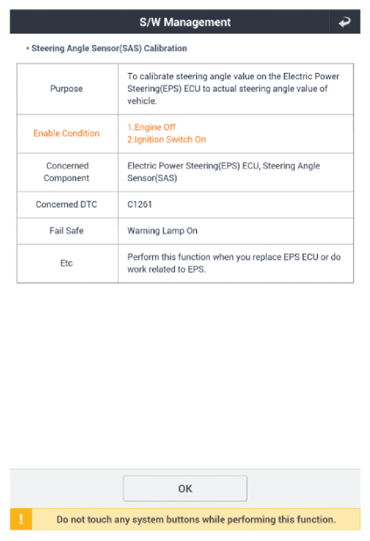

- After Selecting the "vehicle model" and "system", select the "SAS Calibration" on diagnostic tool vehicle selection screen.
- Remove the DTC.
- Turn off the IG switch and wait for 10 seconds or more before starting the engine. And then make sure that MDPS works properly.
