Home
>>
Genesis
>>
2023
>>
GV70 2.5T Advanced
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Hydraulic System - 2.5L
>>
Fluid
>>
Components and Components Location
Components and Components Location

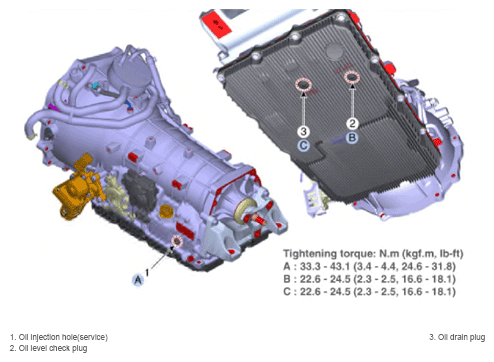

Fig 1: Fluid Components Location With Torque Specifications
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
