Height Adjust: Replacement
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
- Loosen the mounting bolt and remove the front seat belt upper anchor.
(Refer to "FRONT SEAT BELT PRETENSIONER ")

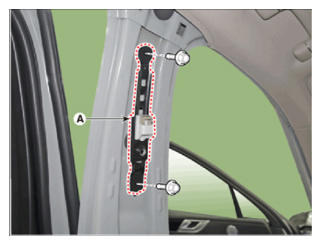

- After loosening the mounting bolts, then remove the height adjust (A).
Tightening torque:
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)
- To install, reverse removal procedure.
