Engine Electrical System - General Information - 2.5L
>>
Specifications
>>
Charging System
>>
Alternator

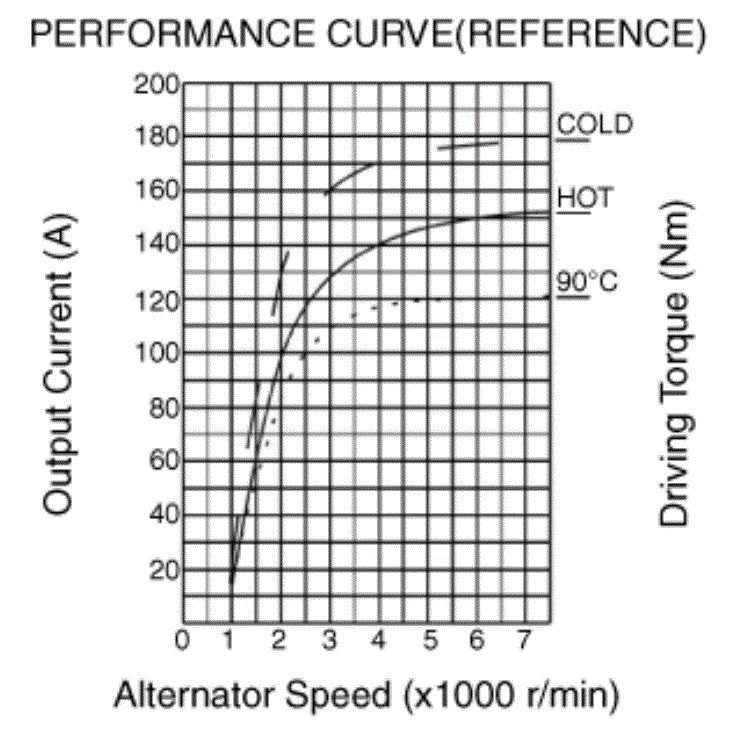

Charging System: Alternator
Item
Specification
Rated voltage
13.5V, 150A
Speed in use
1, 000 - 18, 000 RPM
Pin
1 (LIN)
Courtesy of HYUNDAI MOTOR AMERICA
