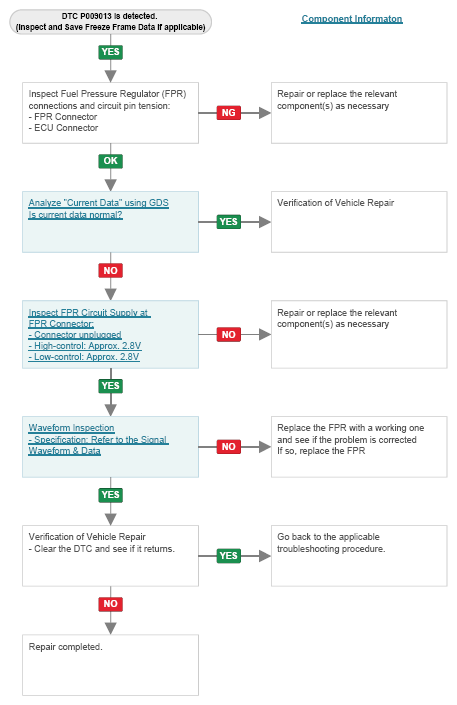

Home >> Genesis >> 2023 >> GV70 2.5T Advanced >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis - 2.5L (1 Of 6) >> DTC P0090-13: Fuel Pressure Regulator 1 Control Circuit/Open >> Troubleshooting >> Diagnostic Flowchart
