Switch Diagnosis
- In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic tools.
The diagnostic tools provides the following information.
- Fault Code Searching: Checking failure and code number (DTC)
- Data Analysis: Checking the system input/output data state
- Actuation test: Checking the system operation condition
- S/W Management: Controlling other features including system option setting and zero point adjustment

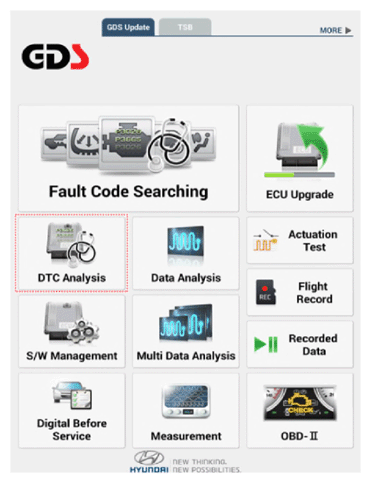

- If diagnose the vehicle by Diagnostic tool, select "DTC Analysis" and "Vehicle".

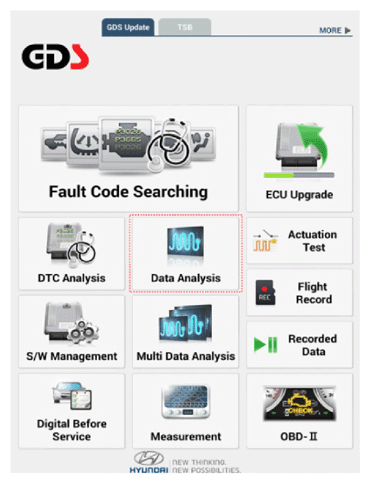

- If check current status, select the "Data Analysis" and "Car model".

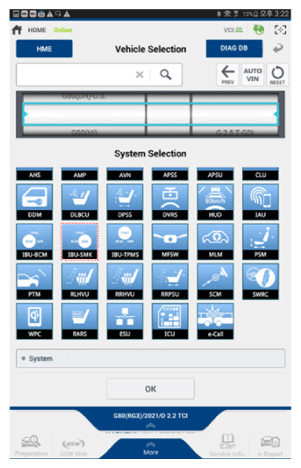

- Select the SMK' to be checked in order to check the vehicle with the tester.
- You can see the situation of each switch on scanner after connecting the "current data" process.
| Display | Description |
|---|---|
| FL Toggle SW | ON: Push button is ON in the driver door handle. |
| FR Toggle SW | ON: Push button is ON in the assist door handle. |
| Tailgate open SW | ON: Tailgate button is ON. |
| Gear P Position | ON: Shift lever is P position. |
| IGN 1 | ON: IGN switch is IG position. |
| ACC | ON: IGN switch is ACC position. |
| Brake SW | ON: Brake switch is ON. |
