Tailgate Open Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear wiper motor.

    (Refer to Rear Wiper/washer - "REAR WIPER MOTOR ")

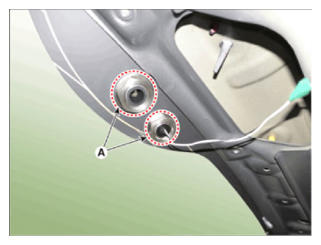

  3. Loosen mounting nuts (A).
    G14754734Courtesy of HYUNDAI MOTOR AMERICA

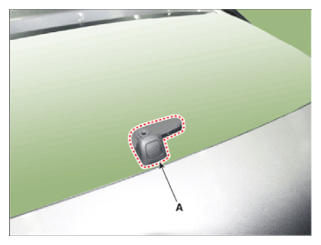

  4. Remove the tailgate open switch (A).
    G14754735Courtesy of HYUNDAI MOTOR AMERICA
