Repair Procedures: Removal: Rear
WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Disconnect the brake fluid level switch connector, and remove the reservoir cap.
- Remove the brake fluid from the master cylinder reservoir with a syringe.CAUTION:
- Do not spill brake fluid on the vehicle, it may damage the paint; if brake fluid does contact the paint, wash it off immediately with water.

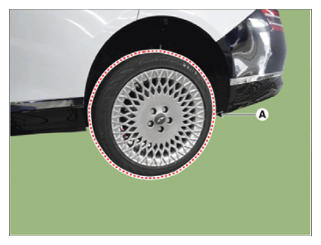

- Remove the rear wheel and tire (A) from rear hub.
Tightening torque:
137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)
NOTE: - Remove the rear wheel guard.
(Refer to Body - "REAR WHEEL GUARD ")

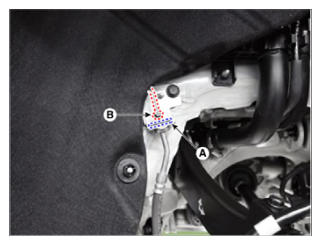

- Remove the brake hose clip (A).
- Separate the brake tube after loosening the tube flare nut (B).
Tightening torque:
13.7 - 16.7 N.m (1.4 - 1.7 kgf.m, 10.1 - 12.3 lb-ft)

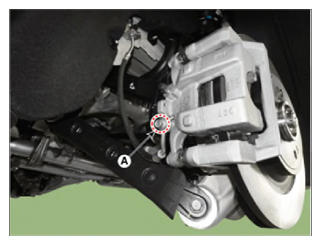

- Separate the brake hose from the brake caliper by loosening the bolt (A).
Tightening torque:
24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 18.1 - 21.7 lb-ft)
