Passenger's side

WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center panel.

    (Refer to Body - "CRASH PAD CENTER PANEL ")

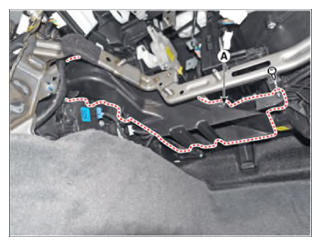

  3. Remove the passenger's side shower duct (A) after loosening the screw.
    G15555118Courtesy of HYUNDAI MOTOR AMERICA

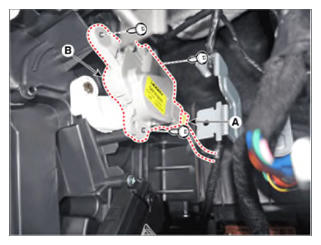

  4. Disconnect the connector (A) and then remove the passenger's side temperature control actuator (B) after loosening the mounting screws.
    G15555119Courtesy of HYUNDAI MOTOR AMERICA
  5. Install in the reverse order of removal.
